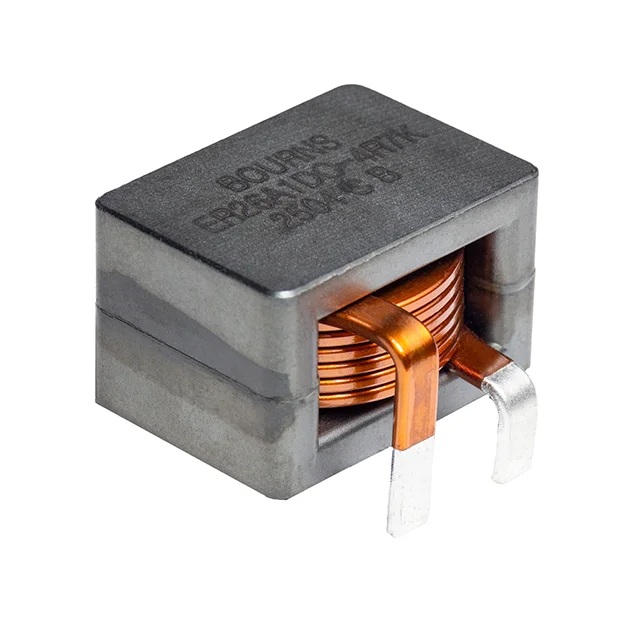

FIXED IND 10UH 32A 2 MOHM TH
| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating | 32 A |
| DC Resistance (DCR) | 2mOhm Max |
| saturationCurrent | 41A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 1.083" L x 0.827" W (27.50mm x 21.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10UH 32A 2 MOHM TH |
| Series | ER26A |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 200 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.669" (17.00mm) |
| features | - |
