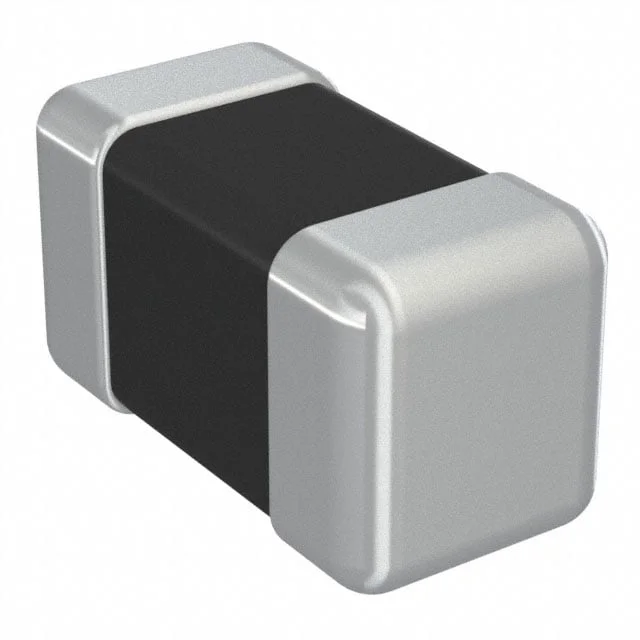

FIXED IND 47NH 100MA 1.9 OHM SMD
| Inductance | 47 nH |
| Tolerance | ±5% |
| Current Rating | 100 mA |
| DC Resistance (DCR) | 1.9Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Case / Size | 0201 (0603 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 47NH 100MA 1.9 OHM SMD |
| Series | HK |
| productStatus | Obsolete |
| typeConstruction | Multilayer |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 4 @ 100MHz |
| selfResonantFreq | 1.3GHz |
| ratings | - |
| testFrequency | 100 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0201 (0603 Metric) |
| heightMax | 0.013" (0.33mm) |
| features | - |
