Description

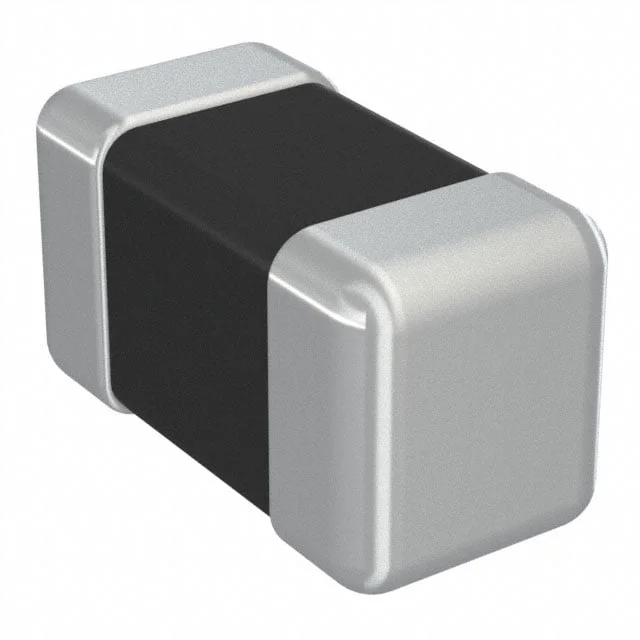

FIXED IND 56NH 80MA 2.27 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for HK060356NJ-T.
HK060356NJ-T has an inductance value of 56 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
HK060356NJ-T is rated for 80 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
HK060356NJ-T lists a DC resistance of 2.27Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
HK060356NJ-T uses a package or case of 0201 (0603 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from HK060356NJ-T to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 56 nH |
| Tolerance | ±5% |
| Current Rating | 80 mA |
| DC Resistance (DCR) | 2.27Ohm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Case / Size | 0201 (0603 Metric) |
| Package / Case | 0201 (0603 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 56NH 80MA 2.27 OHM SMD |
| Series | HK |
| Product Status | Obsolete |
| Type / Construction | Multilayer |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 4 @ 100MHz |
| Self Resonant Frequency | 1.1GHz |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0201 (0603 Metric) |
| Height - Seated (Max) | 0.013" (0.33mm) |
