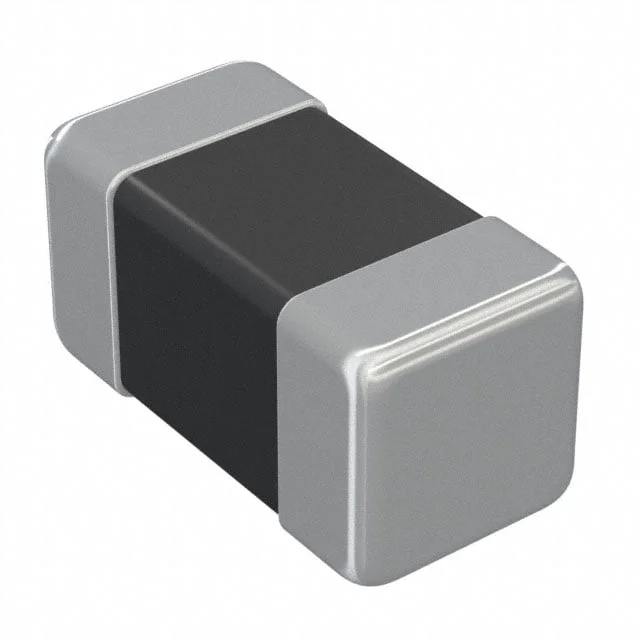

HK10058N2S-T
Taiyo Yuden
Description
FIXED IND 8.2NH 380MA 280 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for HK10058N2S-T.
HK10058N2S-T has an inductance value of 8.2 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
HK10058N2S-T is rated for 380 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
HK10058N2S-T lists a DC resistance of 280mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
HK10058N2S-T uses a package or case of 0402 (1005 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from HK10058N2S-T to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 8.2 nH |
| Tolerance | ±0.3nH |
| Current Rating | 380 mA |
| DC Resistance (DCR) | 280mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Case / Size | 0402 (1005 Metric) |
| Package / Case | 0402 (1005 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 8.2NH 380MA 280 MOHM |
| Series | HK |
| Product Status | Obsolete |
| Type / Construction | Multilayer |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 8 @ 100MHz |
| Self Resonant Frequency | 3.6GHz |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0402 (1005 Metric) |
| Height - Seated (Max) | 0.022" (0.55mm) |
