Description

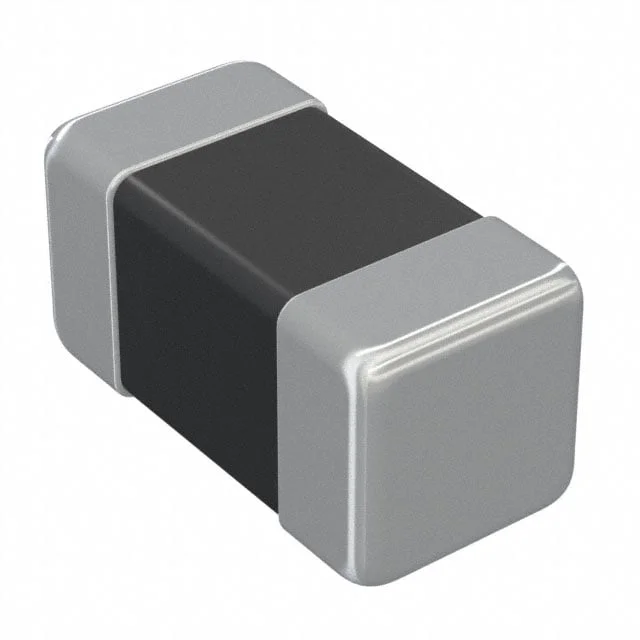

FIXED IND 270NH 200MA 4.8 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for HK1005R27J-T.
HK1005R27J-T has an inductance value of 270 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
HK1005R27J-T is rated for 200 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
HK1005R27J-T lists a DC resistance of 4.8Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
HK1005R27J-T uses a package or case of 0402 (1005 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from HK1005R27J-T to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 270 nH |
| Tolerance | ±5% |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 4.8Ohm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Case / Size | 0402 (1005 Metric) |
| Package / Case | 0402 (1005 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 270NH 200MA 4.8 OHM |
| Series | HK |
| Product Status | Obsolete |
| Type / Construction | Multilayer |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 8 @ 100MHz |
| Self Resonant Frequency | 400MHz |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0402 (1005 Metric) |
| Height - Seated (Max) | 0.022" (0.55mm) |
