Description

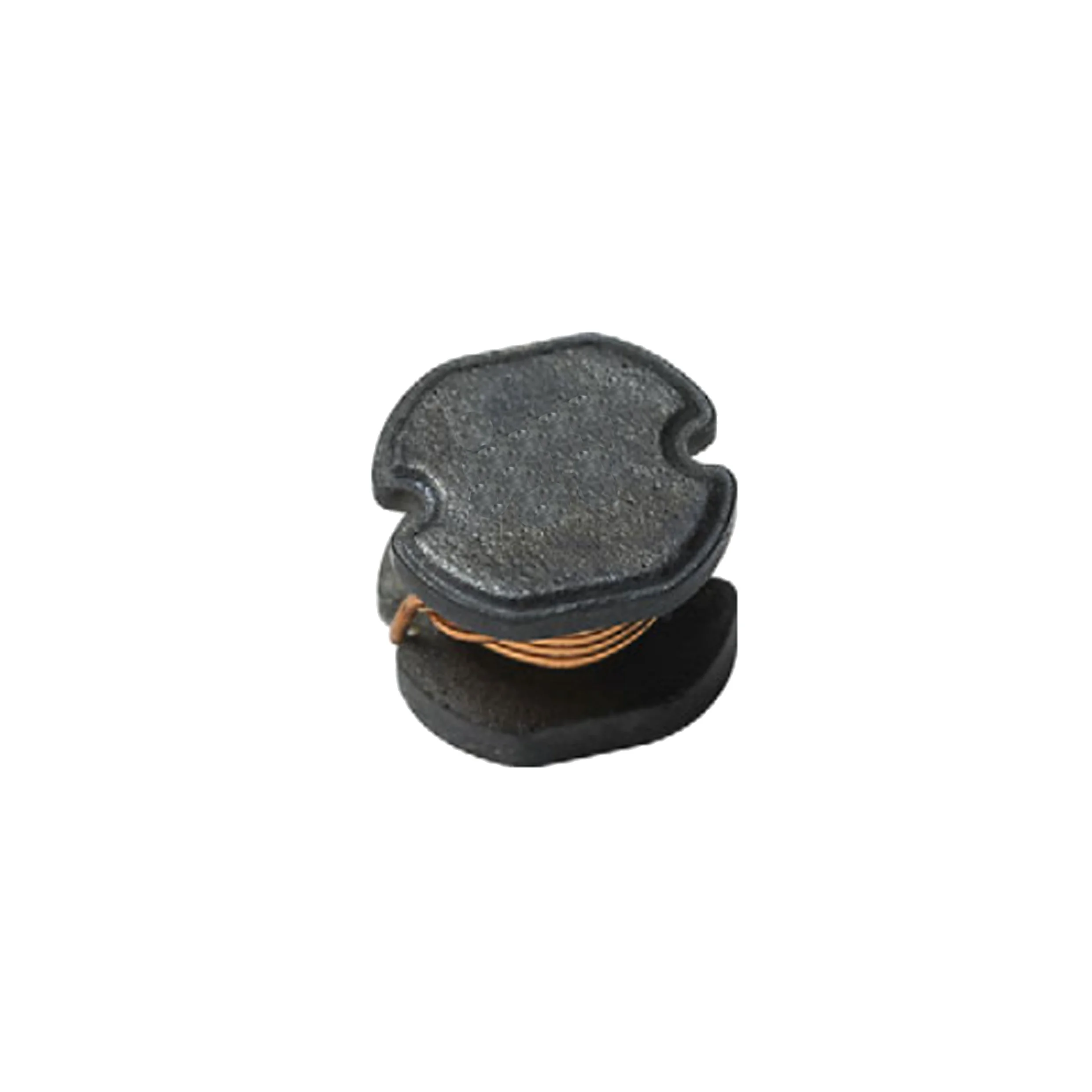

FIXED IND 1MH 200MA 6 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for IDCP2218ER102M01.
IDCP2218ER102M01 has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
IDCP2218ER102M01 is rated for 200 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
IDCP2218ER102M01 lists a DC resistance of 6Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
IDCP2218ER102M01 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from IDCP2218ER102M01 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 6Ohm Max |
| Dimensions | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Vishay Dale |
| Description | FIXED IND 1MH 200MA 6 OHM SMD |
| Series | IDCP-2218 |
| Product Status | Discontinued at DigiKey |
| Type / Construction | Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.189" (4.80mm) |
