Description

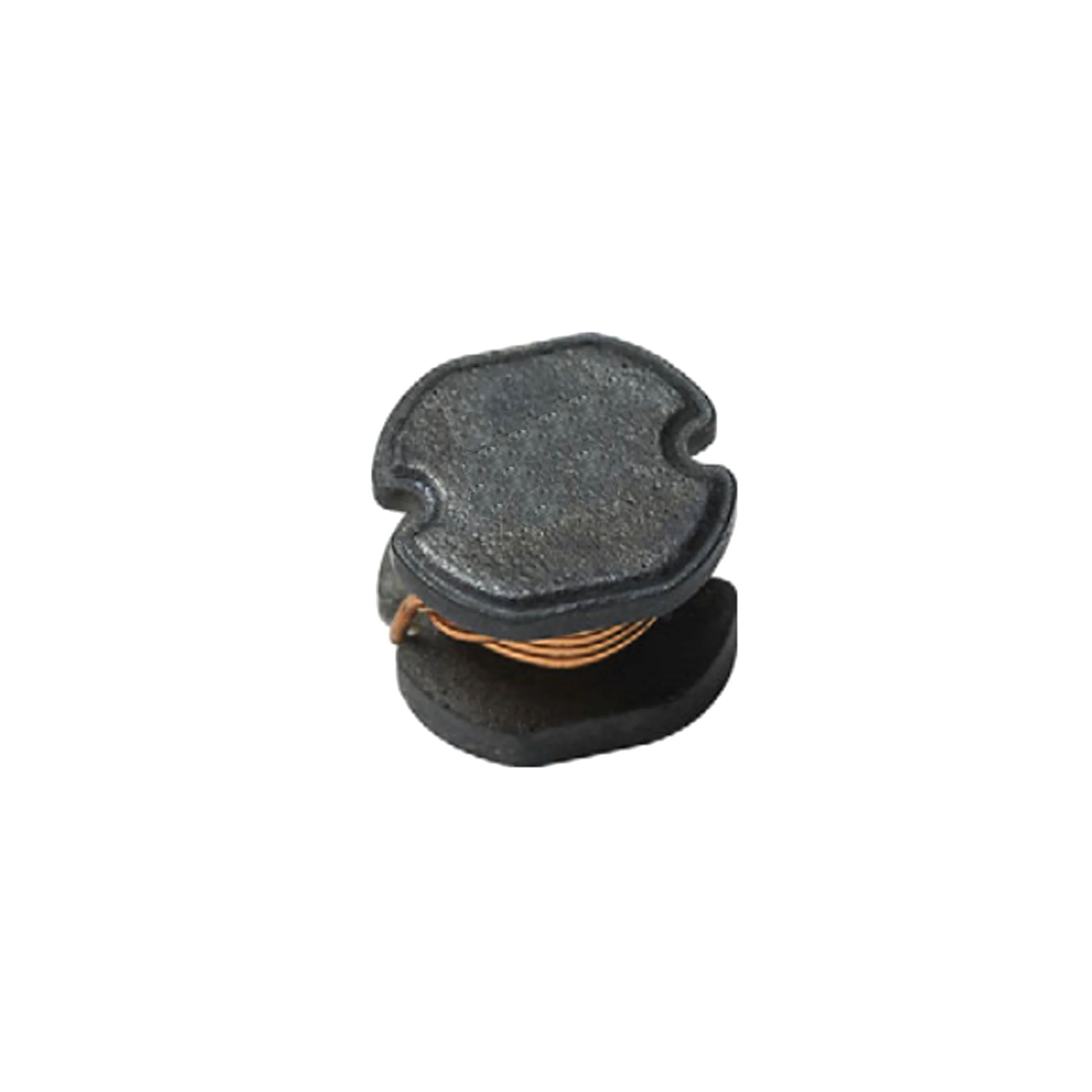

FIXED IND 27UH 970MA 200 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for IDCP2218ER270M.
IDCP2218ER270M has an inductance value of 27 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
IDCP2218ER270M is rated for 970 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
IDCP2218ER270M lists a DC resistance of 200mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
IDCP2218ER270M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from IDCP2218ER270M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 27 µH |
| Tolerance | ±20% |
| Current Rating | 970 mA |
| DC Resistance (DCR) | 200mOhm Max |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Vishay Dale |
| Description | FIXED IND 27UH 970MA 200 MOHM |
| Series | IDCP-2218 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 2.52 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.177" (4.50mm) |
