Description

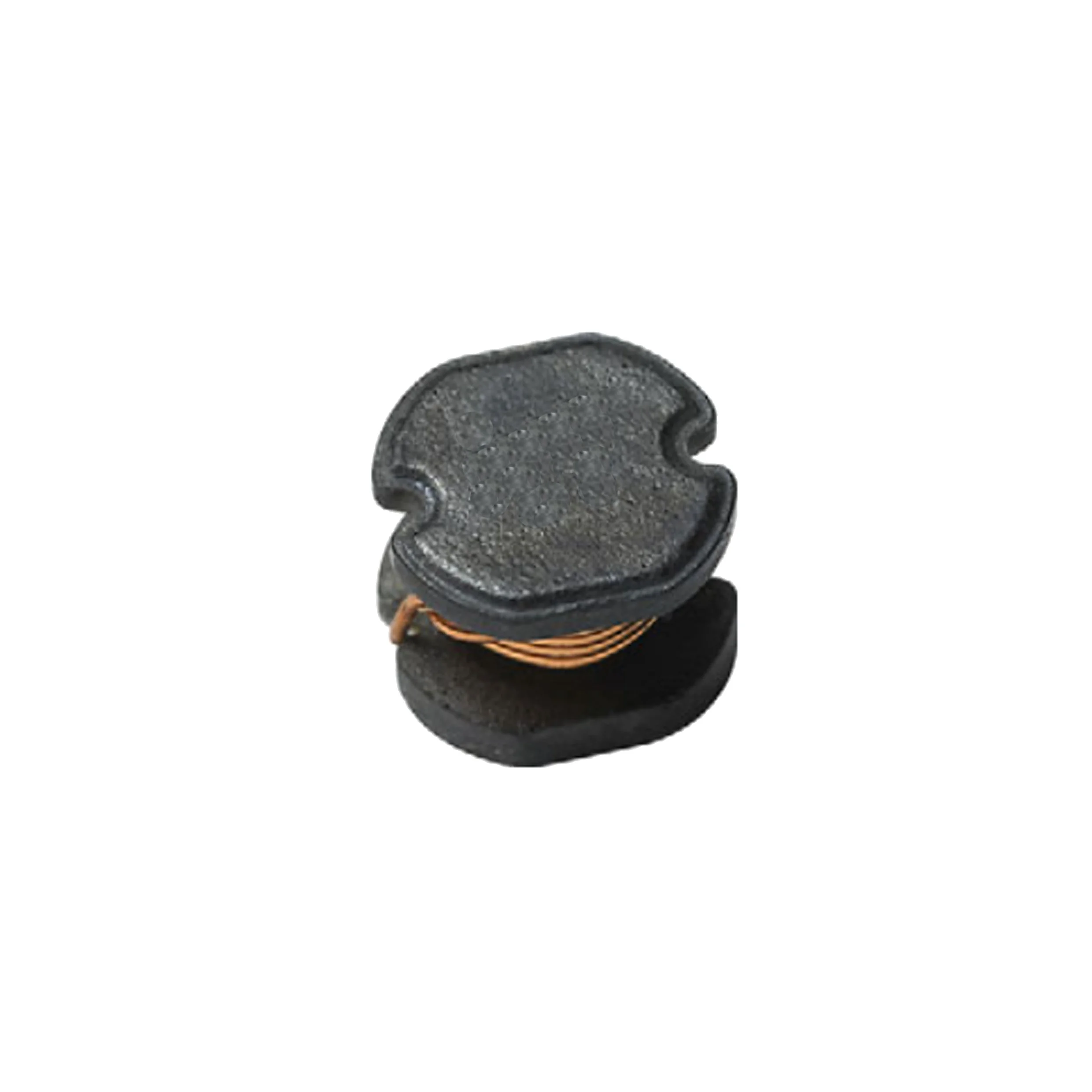

FIXED IND 33UH 880MA 230 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for IDCP2218ER330M.
IDCP2218ER330M has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
IDCP2218ER330M is rated for 880 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
IDCP2218ER330M lists a DC resistance of 230mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
IDCP2218ER330M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from IDCP2218ER330M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating | 880 mA |
| DC Resistance (DCR) | 230mOhm Max |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Vishay Dale |
| Description | FIXED IND 33UH 880MA 230 MOHM |
| Series | IDCP-2218 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 2.52 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.177" (4.50mm) |
