Description

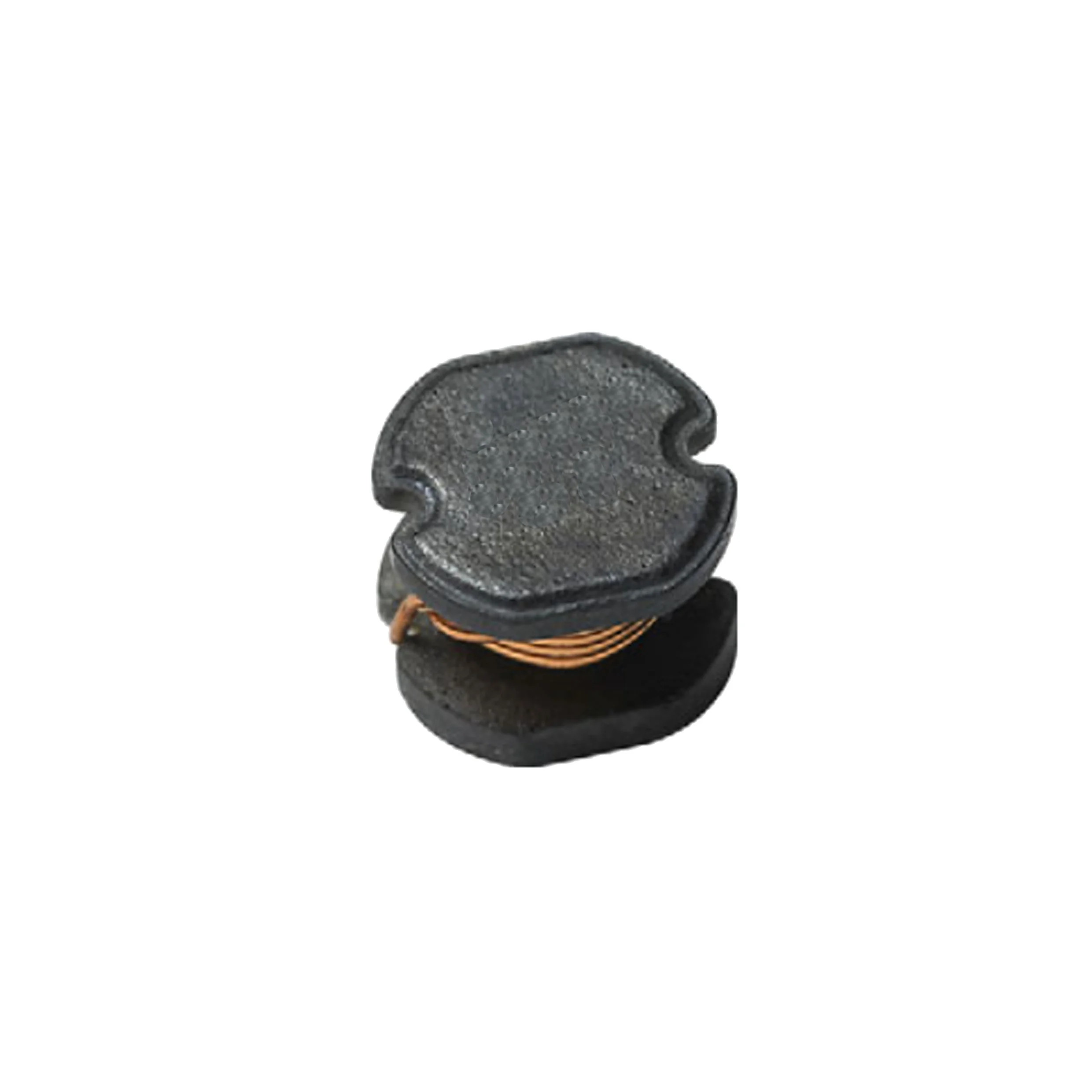

FIXED IND 4.7UH SURFACE MOUNT
Specifications
Inductance
4.7 µH
Dimensions
0.228" L x 0.205" W (5.80mm x 5.20mm)
Parameter Guide
Understand the key electrical and mechanical specifications for IDCP2218ER4R7M.
Inductance
4.7 µH
IDCP2218ER4R7M has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Package / Case
Nonstandard
IDCP2218ER4R7M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from IDCP2218ER4R7M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Vishay Dale |
| Description | FIXED IND 4.7UH SURFACE MOUNT |
| Series | IDCP-2218 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 2.52 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.177" (4.50mm) |
