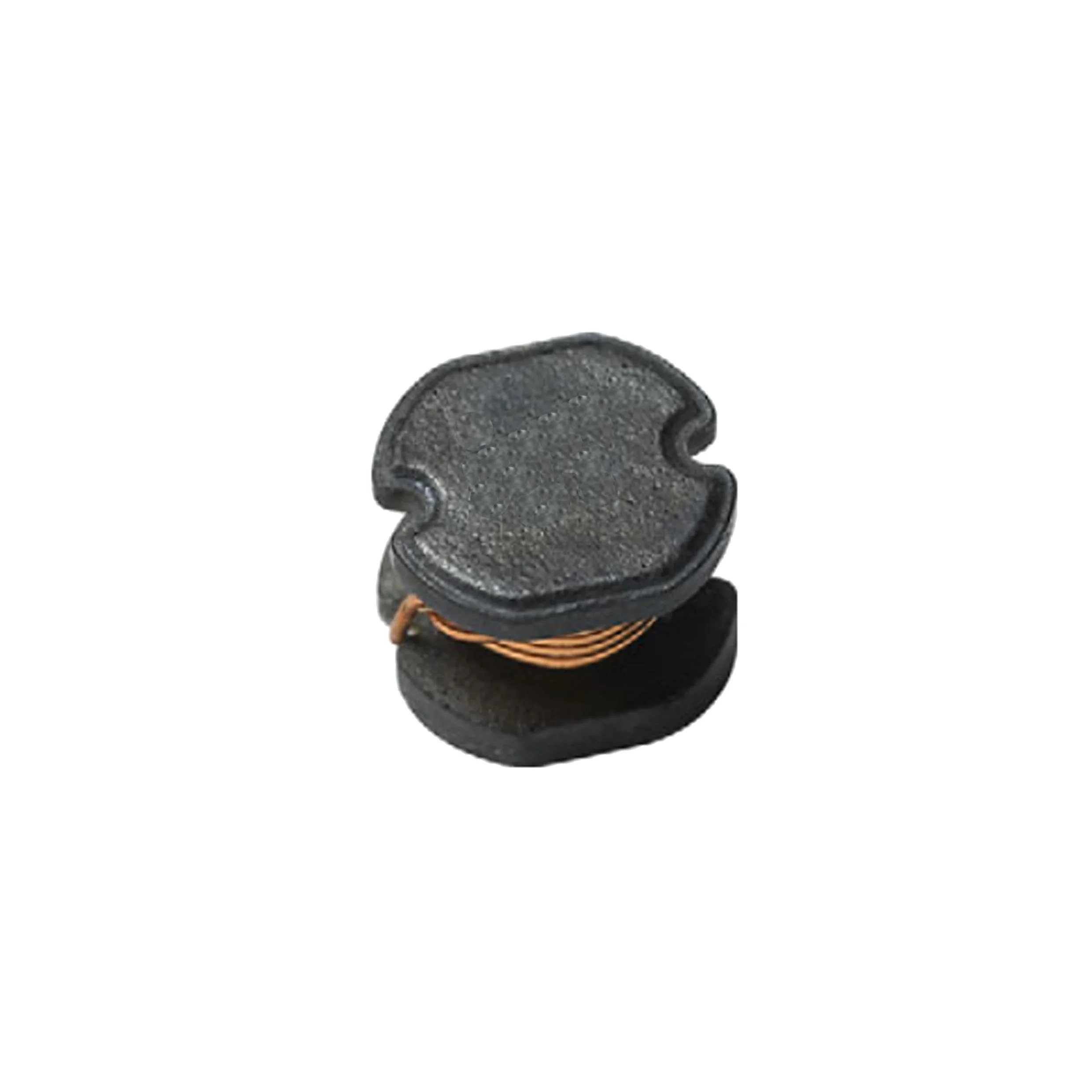

FIXED IND 68UH 610MA 460 MOHM
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 610 mA |
| DC Resistance (DCR) | 460mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| Case / Size | Nonstandard |
| Supplier | Vishay Dale |
| Description | FIXED IND 68UH 610MA 460 MOHM |
| Series | IDCP-2218 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.177" (4.50mm) |
| features | - |
