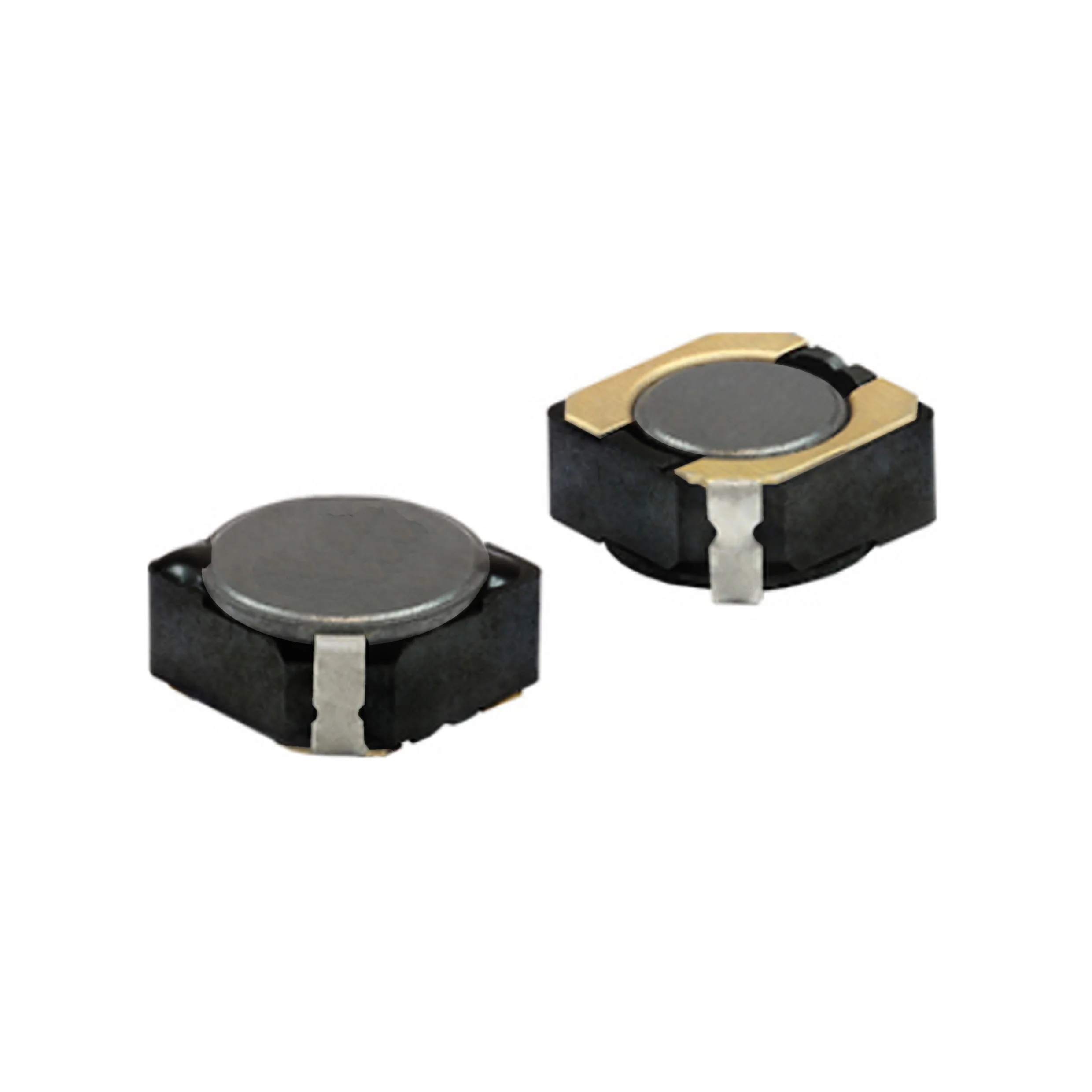

FIXED IND 3.3UH 3.5A 20 MOHM SMD
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating | 3.5 A |
| DC Resistance (DCR) | 20mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Vishay Dale |
| Description | FIXED IND 3.3UH 3.5A 20 MOHM SMD |
| Series | IFDC-2525DZ |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.157" (4.00mm) |
| features | - |
