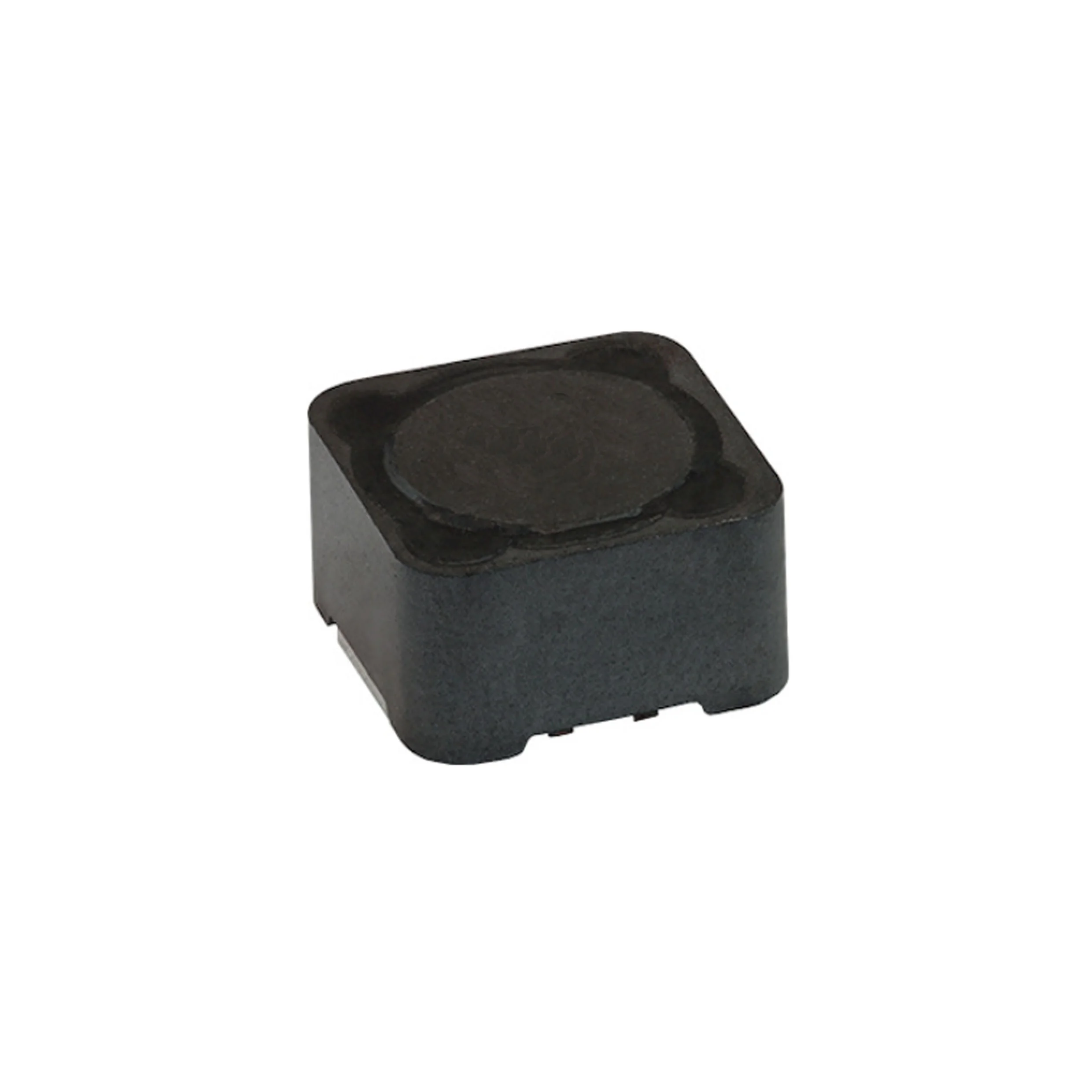

Description
FIXED IND 12UH 1.71A 58 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for IFDC3030EZER120M.
IFDC3030EZER120M has an inductance value of 12 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
IFDC3030EZER120M is rated for 1.71 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
IFDC3030EZER120M lists a DC resistance of 58mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
IFDC3030EZER120M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from IFDC3030EZER120M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 12 µH |
| Tolerance | ±20% |
| Current Rating | 1.71 A |
| DC Resistance (DCR) | 58mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.307" L x 0.307" W (7.80mm x 7.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Vishay Dale |
| Description | FIXED IND 12UH 1.71A 58 MOHM SMD |
| Series | IFDC-3030EZ |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.197" (5.00mm) |
