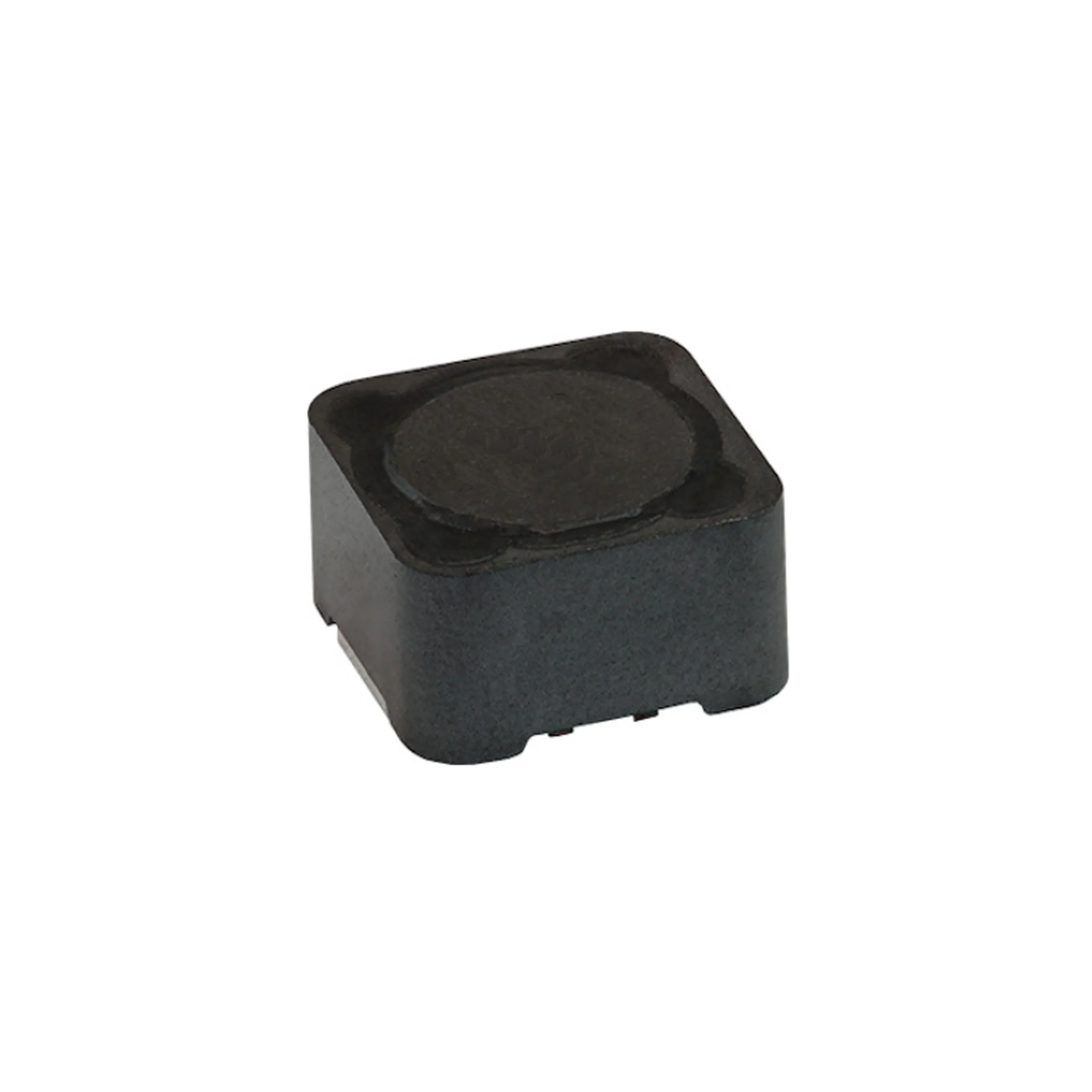

FIXED IND 270UH 340MA 1.64 OHM
| Inductance | 270 µH |
| Tolerance | ±20% |
| Current Rating | 340 mA |
| DC Resistance (DCR) | 1.64Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.307" L x 0.307" W (7.80mm x 7.80mm) |
| Case / Size | Nonstandard |
| Supplier | Vishay Dale |
| Description | FIXED IND 270UH 340MA 1.64 OHM |
| Series | IFDC-3030EZ |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.197" (5.00mm) |
| features | - |
