Description

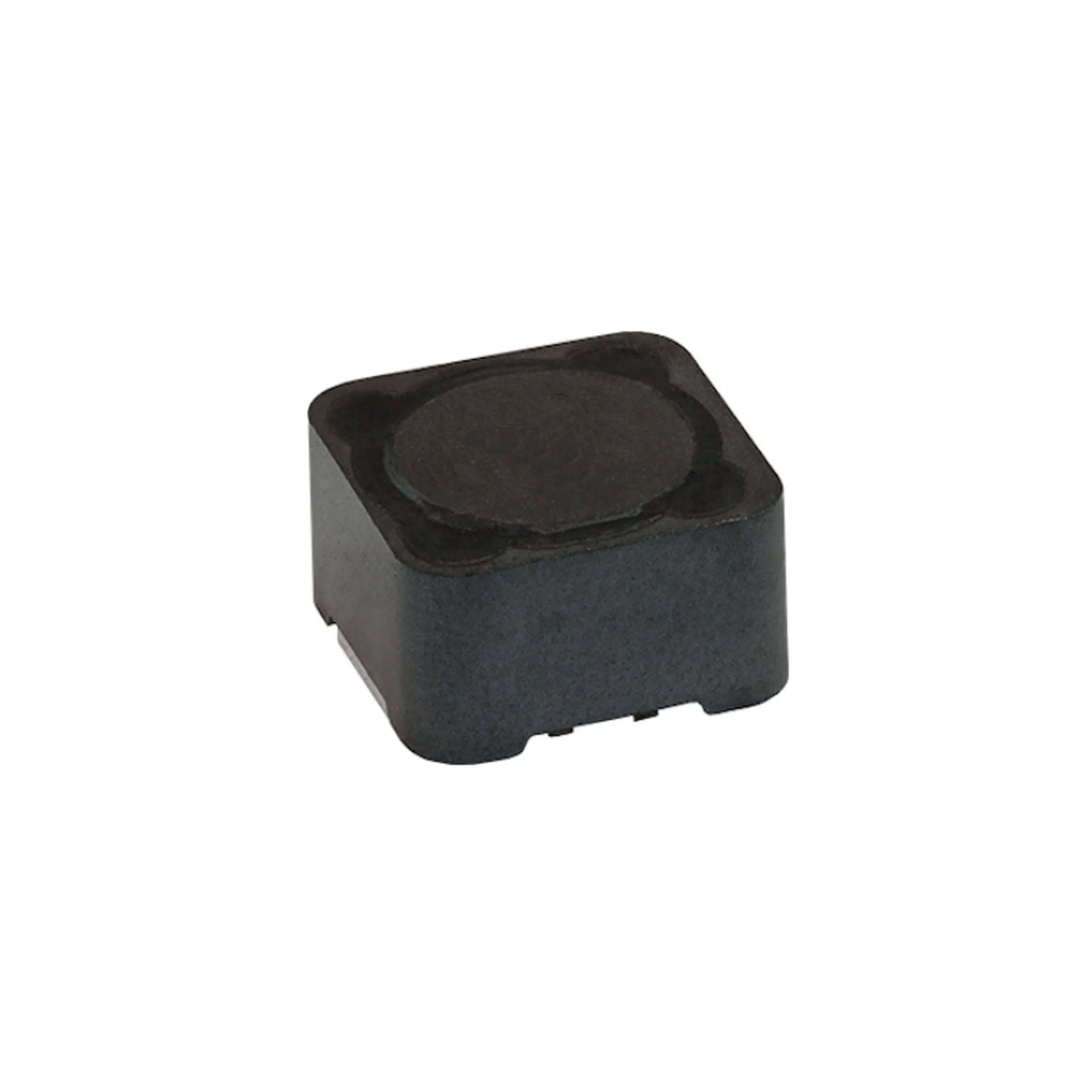

FIXED IND 82UH 610MA 430 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for IFDC3030EZER820M.
IFDC3030EZER820M has an inductance value of 82 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
IFDC3030EZER820M is rated for 610 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
IFDC3030EZER820M lists a DC resistance of 430mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
IFDC3030EZER820M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from IFDC3030EZER820M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 82 µH |
| Tolerance | ±20% |
| Current Rating | 610 mA |
| DC Resistance (DCR) | 430mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.307" L x 0.307" W (7.80mm x 7.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Vishay Dale |
| Description | FIXED IND 82UH 610MA 430 MOHM |
| Series | IFDC-3030EZ |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.197" (5.00mm) |
