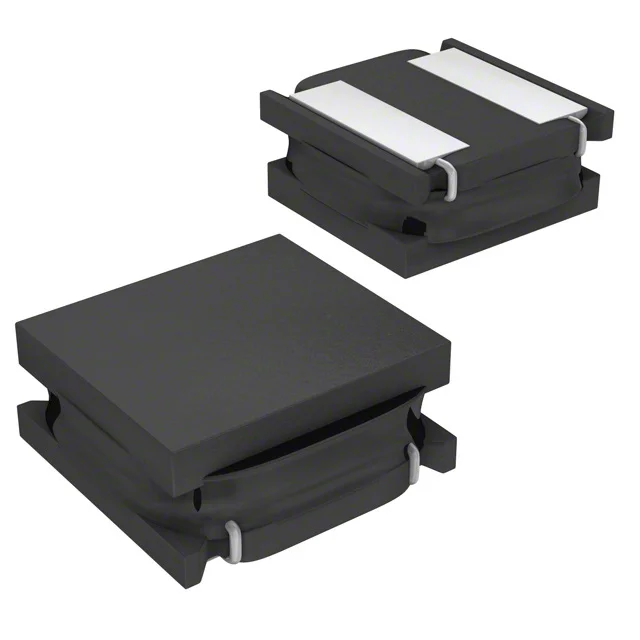

FIXED IND 6.8UH 1.2A 228 MOHM
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 228mOhm Max |
| saturationCurrent | 1A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.114" L x 0.114" W (2.90mm x 2.90mm) |
| Case / Size | Nonstandard |
| Supplier | Vishay Dale |
| Description | FIXED IND 6.8UH 1.2A 228 MOHM |
| Series | IFSC-1111AB |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.051" (1.30mm) |
| features | - |
