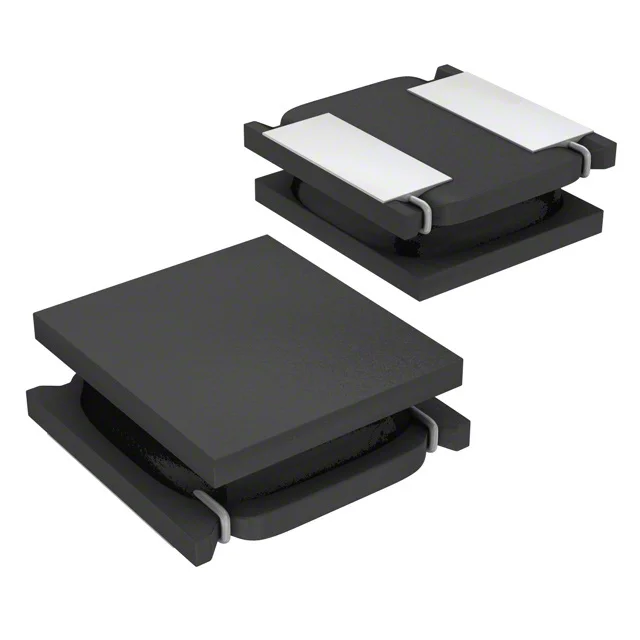

FIXED IND 4.7UH 1A 200 MOHM SMD
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 200mOhm Max |
| saturationCurrent | 750mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.117" L x 0.117" W (3.00mm x 3.00mm) |
| Case / Size | Nonstandard |
| Supplier | Vishay Dale |
| Description | FIXED IND 4.7UH 1A 200 MOHM SMD |
| Series | IFSC-1111AZ |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.039" (1.00mm) |
| features | - |
