Description

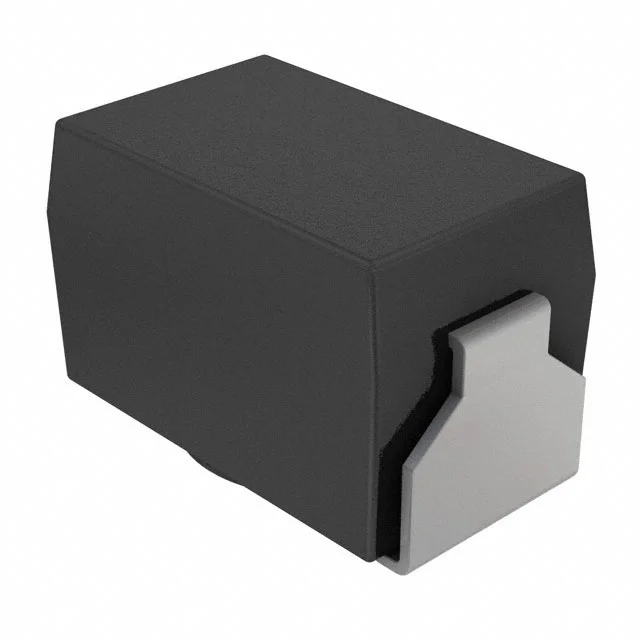

FIXED IND 1UH 120MA 2.98 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for IMC0805ER1R0K.
IMC0805ER1R0K has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
IMC0805ER1R0K is rated for 120 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
IMC0805ER1R0K lists a DC resistance of 2.98Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
IMC0805ER1R0K uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from IMC0805ER1R0K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±10% |
| Current Rating | 120 mA |
| DC Resistance (DCR) | 2.98Ohm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Vishay Dale |
| Description | FIXED IND 1UH 120MA 2.98 OHM SMD |
| Series | IMC-0805 |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Core Material | Non-Magnetic |
| Shielding | Unshielded |
| Q @ Frequency | 8 @ 7.96MHz |
| Self Resonant Frequency | 80MHz |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.061" (1.55mm) |
