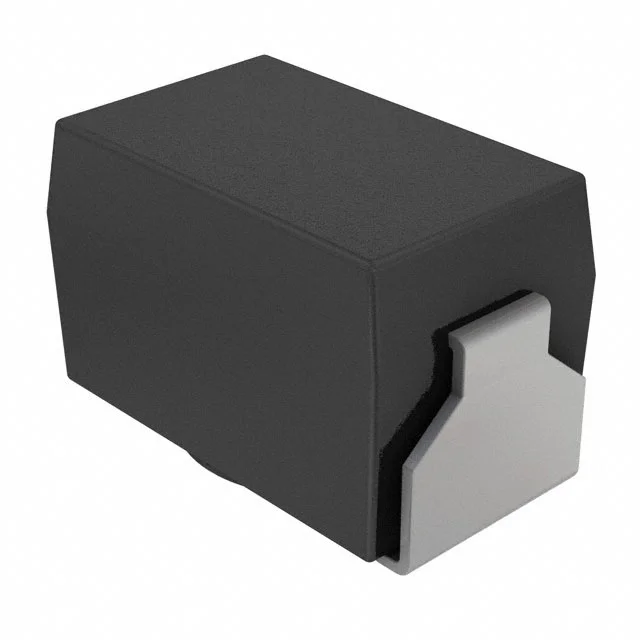

FIXED IND 22NH 465MA 220 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for IMC0805ER22NK.
IMC0805ER22NK has an inductance value of 22 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
IMC0805ER22NK is rated for 465 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
IMC0805ER22NK lists a DC resistance of 220mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
IMC0805ER22NK uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from IMC0805ER22NK to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 22 nH |
| Tolerance | ±10% |
| Current Rating | 465 mA |
| DC Resistance (DCR) | 220mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Vishay Dale |
| Description | FIXED IND 22NH 465MA 220 MOHM |
| Series | IMC-0805 |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Core Material | Non-Magnetic |
| Shielding | Unshielded |
| Q @ Frequency | 15 @ 100MHz |
| Self Resonant Frequency | 2.6GHz |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.061" (1.55mm) |
