Description

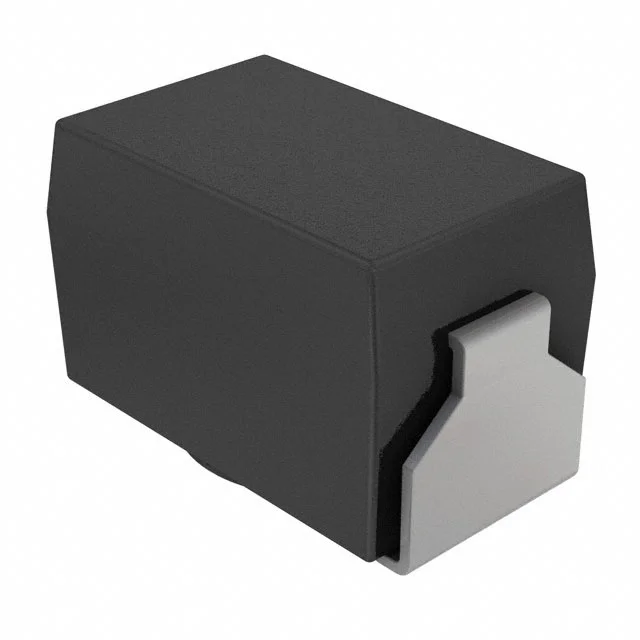

FIXED IND 39NH 390MA 310 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for IMC0805ER39NJ.
IMC0805ER39NJ has an inductance value of 39 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
IMC0805ER39NJ is rated for 390 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
IMC0805ER39NJ lists a DC resistance of 310mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
IMC0805ER39NJ uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from IMC0805ER39NJ to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 39 nH |
| Tolerance | ±5% |
| Current Rating | 390 mA |
| DC Resistance (DCR) | 310mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Vishay Dale |
| Description | FIXED IND 39NH 390MA 310 MOHM |
| Series | IMC-0805 |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Core Material | Non-Magnetic |
| Shielding | Unshielded |
| Q @ Frequency | 15 @ 100MHz |
| Self Resonant Frequency | 2GHz |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.061" (1.55mm) |
