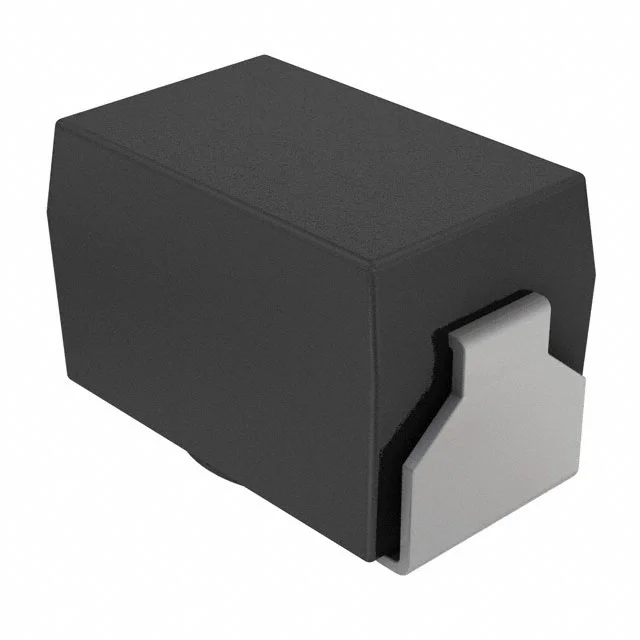

FIXED IND 47NH 385MA 350 MOHM
| Inductance | 47 nH |
| Tolerance | ±5% |
| Current Rating | 385 mA |
| DC Resistance (DCR) | 350mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Vishay Dale |
| Description | FIXED IND 47NH 385MA 350 MOHM |
| Series | IMC-0805 |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | Non-Magnetic |
| shielding | Unshielded |
| qFactor | 15 @ 100MHz |
| selfResonantFreq | 1.65GHz |
| ratings | - |
| testFrequency | 100 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 (2012 Metric) |
| heightMax | 0.061" (1.55mm) |
| features | - |
