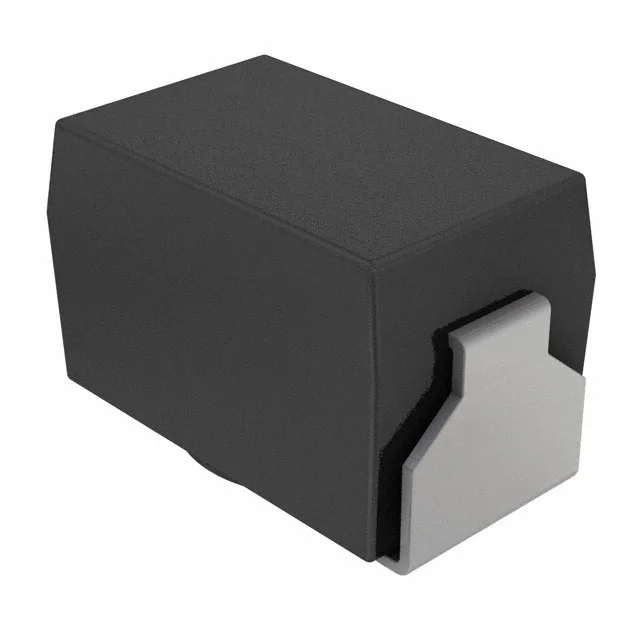

FIXED IND 680NH 130MA 2.32 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for IMC0805ERR68J.
IMC0805ERR68J has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
IMC0805ERR68J is rated for 130 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
IMC0805ERR68J lists a DC resistance of 2.32Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
IMC0805ERR68J uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from IMC0805ERR68J to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±5% |
| Current Rating | 130 mA |
| DC Resistance (DCR) | 2.32Ohm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Vishay Dale |
| Description | FIXED IND 680NH 130MA 2.32 OHM |
| Series | IMC-0805 |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Core Material | Non-Magnetic |
| Shielding | Unshielded |
| Q @ Frequency | 10 @ 25.2MHz |
| Self Resonant Frequency | 100MHz |
| Inductance Test Frequency | 25.2 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.061" (1.55mm) |
