Description

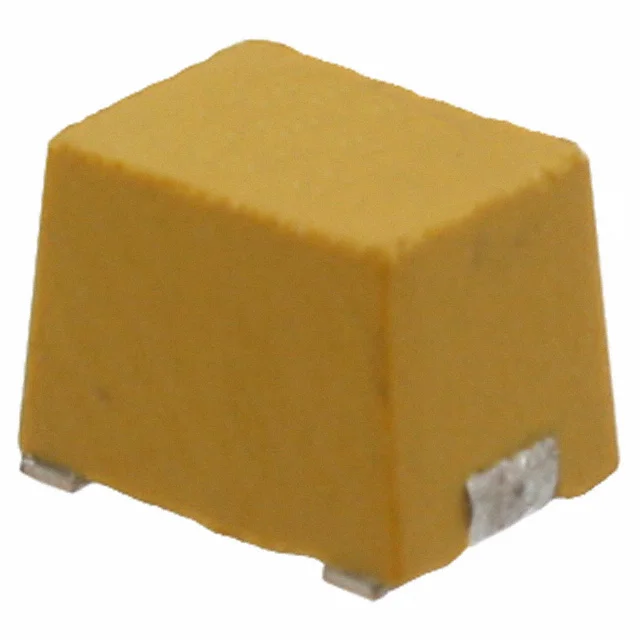

FIXED IND 820NH 250MA 1.6 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for IMC1812RWR82K.
IMC1812RWR82K has an inductance value of 820 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
IMC1812RWR82K is rated for 250 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
IMC1812RWR82K lists a DC resistance of 1.6Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
IMC1812RWR82K uses a package or case of 1812 (4532 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from IMC1812RWR82K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 820 nH |
| Tolerance | ±10% |
| Current Rating | 250 mA |
| DC Resistance (DCR) | 1.6Ohm Max |
| Saturation Current | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Case / Size | 1812 (4532 Metric) |
| Package / Case | 1812 (4532 Metric) |
| Supplier | Vishay Dale |
| Description | FIXED IND 820NH 250MA 1.6 OHM |
| Series | IMC-1812 |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Non-Magnetic |
| Shielding | Unshielded |
| Q @ Frequency | 30 @ 25.2MHz |
| Self Resonant Frequency | 140MHz |
| Ratings | - |
| Inductance Test Frequency | 25.2 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1812 |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Features | - |
