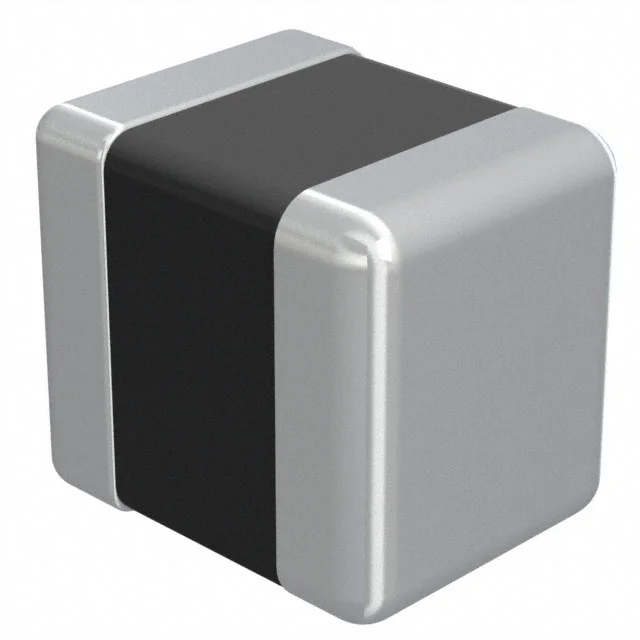

LB2016T1R0MV
Taiyo Yuden
Description
FIXED IND 1UH 490MA 90 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LB2016T1R0MV.
LB2016T1R0MV has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LB2016T1R0MV is rated for 490 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LB2016T1R0MV lists a DC resistance of 90mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LB2016T1R0MV uses a package or case of 0806 (2016 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LB2016T1R0MV to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 490 mA |
| DC Resistance (DCR) | 90mOhm |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Case / Size | 0806 (2016 Metric) |
| Package / Case | 0806 (2016 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 1UH 490MA 90 MOHM SMD |
| Series | LB |
| Product Status | Not For New Designs |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Self Resonant Frequency | 100MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0806 (2016 Metric) |
| Height - Seated (Max) | 0.071" (1.80mm) |
