Description

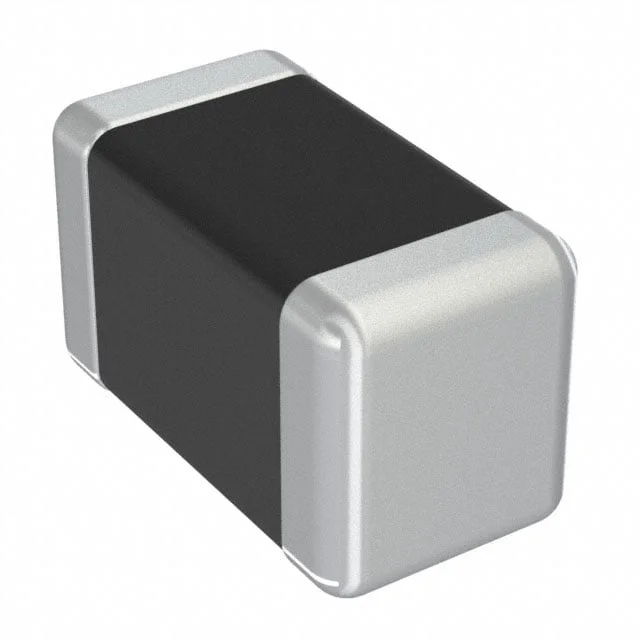

FIXED IND 22UH 255MA 490 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LB3218T220KV.
LB3218T220KV has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LB3218T220KV is rated for 255 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LB3218T220KV lists a DC resistance of 490mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LB3218T220KV uses a package or case of 1207 (3218 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LB3218T220KV to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±10% |
| Current Rating | 255 mA |
| DC Resistance (DCR) | 490mOhm |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.126" L x 0.071" W (3.20mm x 1.80mm) |
| Case / Size | 1207 (3218 Metric) |
| Package / Case | 1207 (3218 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 22UH 255MA 490 MOHM |
| Series | LB |
| Product Status | Not For New Designs |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Self Resonant Frequency | 19MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 2.52 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1207 (3218 Metric) |
| Height - Seated (Max) | 0.079" (2.00mm) |
