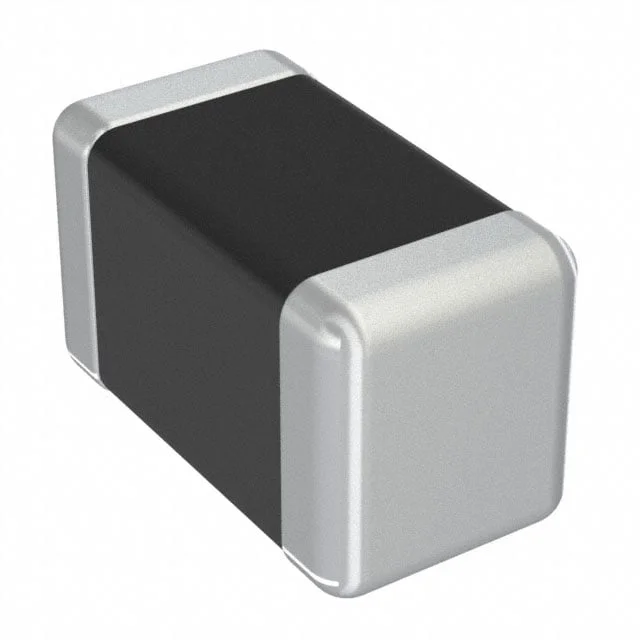

LB3218T220MV
Taiyo Yuden
Description
FIXED IND 22UH 255MA 637 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LB3218T220MV.
LB3218T220MV has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LB3218T220MV is rated for 255 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LB3218T220MV lists a DC resistance of 637mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LB3218T220MV uses a package or case of 1207 (3218 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LB3218T220MV to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 255 mA |
| DC Resistance (DCR) | 637mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.126" L x 0.071" W (3.20mm x 1.80mm) |
| Case / Size | 1207 (3218 Metric) |
| Package / Case | 1207 (3218 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 22UH 255MA 637 MOHM |
| Series | LB |
| Product Status | Not For New Designs |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Self Resonant Frequency | 19MHz |
| Inductance Test Frequency | 2.52 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1207 |
| Height - Seated (Max) | 0.079" (2.00mm) |
