Description

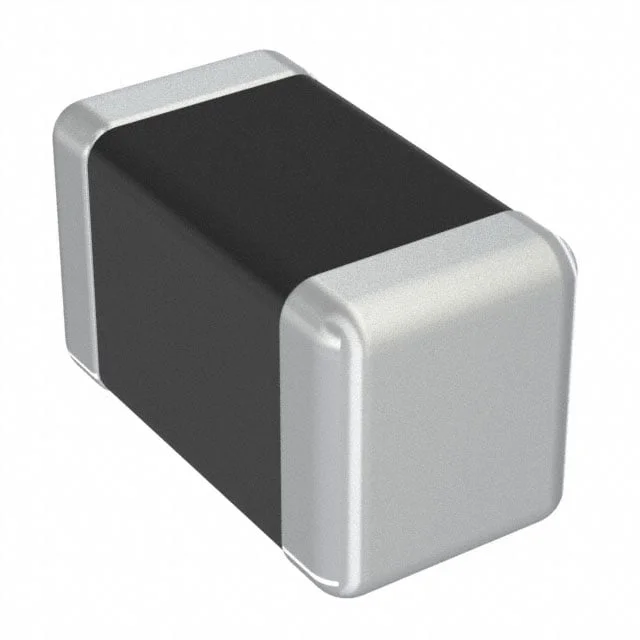

FIXED IND 220UH 80MA 7.02 OHM
Specifications
Inductance
220 µH
Current Rating
80 mA
DC Resistance (DCR)
7.02Ohm Max
Dimensions
0.126" L x 0.071" W (3.20mm x 1.80mm)
Product Attributes
Manufacturer Verified
Last verified: 6/17/2026| Inductance | 220 µH |
| Tolerance | ±10% |
| Current Rating | 80 mA |
| DC Resistance (DCR) | 7.02Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.126" L x 0.071" W (3.20mm x 1.80mm) |
| Case / Size | 1207 (3218 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 220UH 80MA 7.02 OHM |
| Series | LB |
| productStatus | Not For New Designs |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 5MHz |
| ratings | - |
| testFrequency | 796 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1207 |
| heightMax | 0.079" (2.00mm) |
| features | - |
