Description

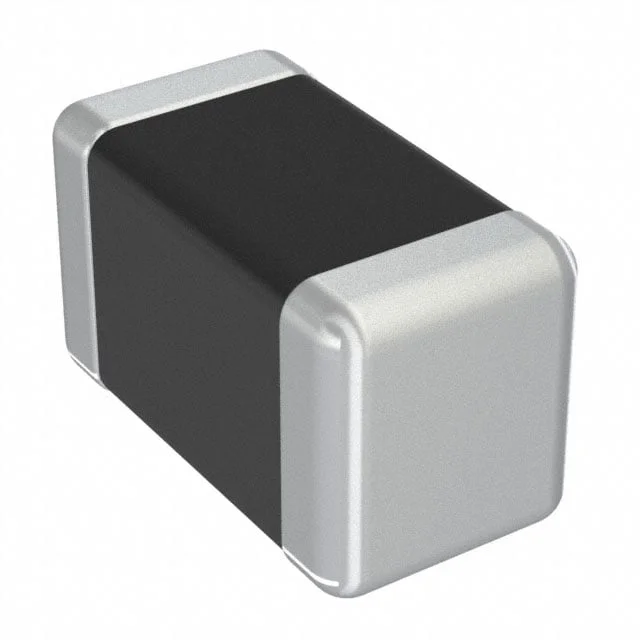

FIXED IND 470UH 54MA 18.2 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LB3218T471MV.
LB3218T471MV has an inductance value of 470 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LB3218T471MV is rated for 54 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LB3218T471MV lists a DC resistance of 18.2Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LB3218T471MV uses a package or case of 1207 (3218 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LB3218T471MV to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 µH |
| Tolerance | ±20% |
| Current Rating | 54 mA |
| DC Resistance (DCR) | 18.2Ohm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.126" L x 0.071" W (3.20mm x 1.80mm) |
| Case / Size | 1207 (3218 Metric) |
| Package / Case | 1207 (3218 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 470UH 54MA 18.2 OHM |
| Series | LB |
| Product Status | Not For New Designs |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Self Resonant Frequency | 3.5MHz |
| Inductance Test Frequency | 796 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1207 |
| Height - Seated (Max) | 0.079" (2.00mm) |
