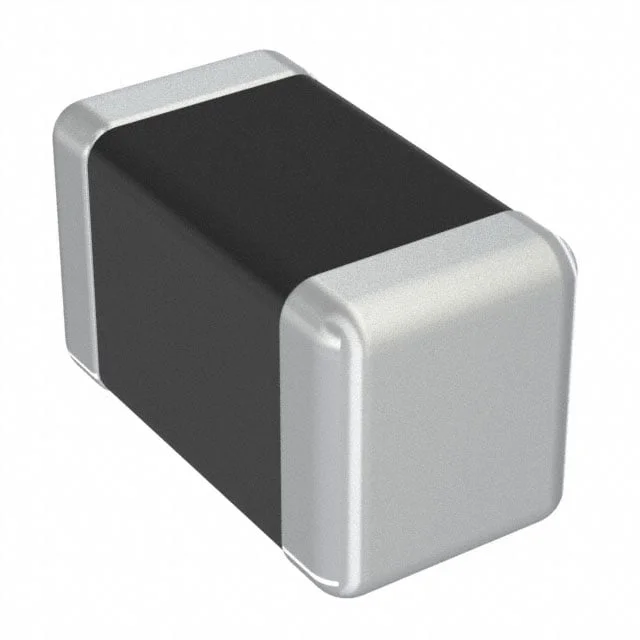

LB3218T4R7MV
Taiyo Yuden
Description
FIXED IND 4.7UH 550MA 130 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LB3218T4R7MV.
LB3218T4R7MV has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LB3218T4R7MV is rated for 550 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LB3218T4R7MV lists a DC resistance of 130mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LB3218T4R7MV uses a package or case of 1207 (3218 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LB3218T4R7MV to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 550 mA |
| DC Resistance (DCR) | 130mOhm |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.126" L x 0.071" W (3.20mm x 1.80mm) |
| Case / Size | 1207 (3218 Metric) |
| Package / Case | 1207 (3218 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 4.7UH 550MA 130 MOHM |
| Series | LB |
| Product Status | Not For New Designs |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Self Resonant Frequency | 41MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1207 (3218 Metric) |
| Height - Seated (Max) | 0.079" (2.00mm) |
