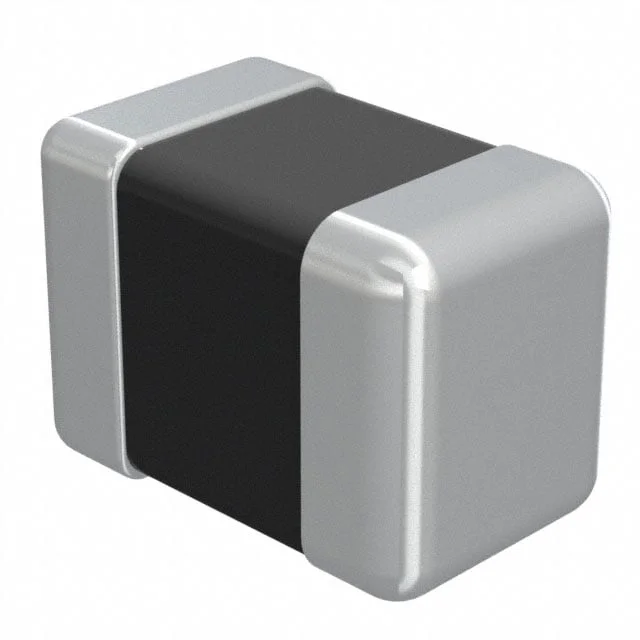

FIXED IND 2.2UH 430MA 330 MOHM
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 430 mA |
| DC Resistance (DCR) | 330mOhm |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 2.2UH 430MA 330 MOHM |
| Series | LB |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Semi-Shielded |
| qFactor | - |
| selfResonantFreq | 70MHz |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 (2012 Metric) |
| heightMax | 0.057" (1.45mm) |
| features | - |
