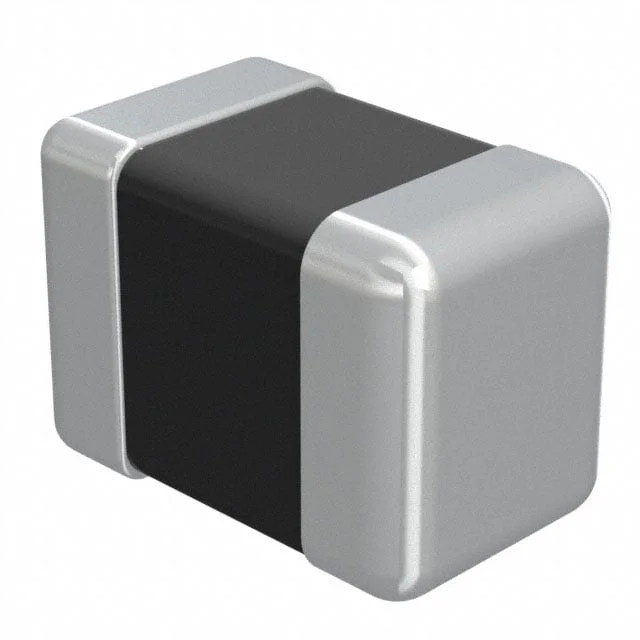

LBC2012T4R7MV
Taiyo Yuden
Description
FIXED IND 4.7UH 295MA 500 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LBC2012T4R7MV.
LBC2012T4R7MV has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LBC2012T4R7MV is rated for 295 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LBC2012T4R7MV lists a DC resistance of 500mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LBC2012T4R7MV uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LBC2012T4R7MV to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 295 mA |
| DC Resistance (DCR) | 500mOhm |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 4.7UH 295MA 500 MOHM |
| Series | LB, C Type |
| Product Status | Not For New Designs |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Self Resonant Frequency | 45MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.057" (1.45mm) |
