Description

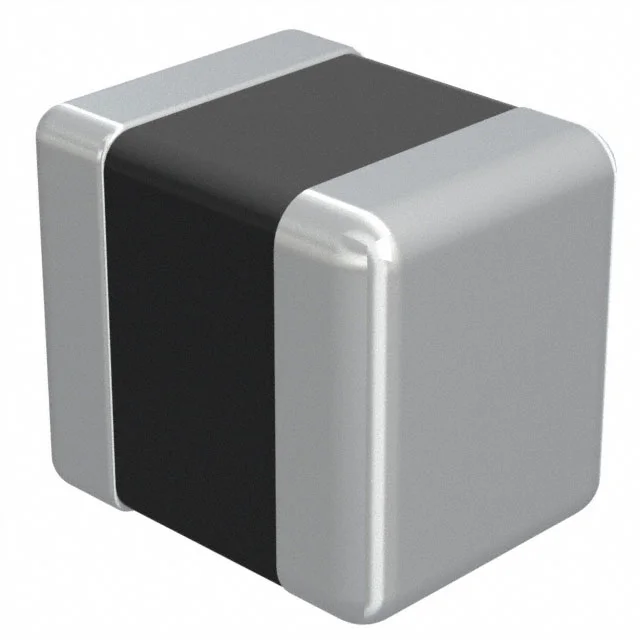

FIXED IND 68UH 95MA 7 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LBC2016T680K.
LBC2016T680K has an inductance value of 68 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LBC2016T680K is rated for 95 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LBC2016T680K lists a DC resistance of 7Ohm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LBC2016T680K uses a package or case of 0806 (2016 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LBC2016T680K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 68 µH |
| Tolerance | ±10% |
| Current Rating | 95 mA |
| DC Resistance (DCR) | 7Ohm |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Case / Size | 0806 (2016 Metric) |
| Package / Case | 0806 (2016 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 68UH 95MA 7 OHM SMD |
| Series | LB |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Semi-Shielded |
| Self Resonant Frequency | 10MHz |
| Inductance Test Frequency | 2.52 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0806 (2016 Metric) |
| Height - Seated (Max) | 0.071" (1.80mm) |
