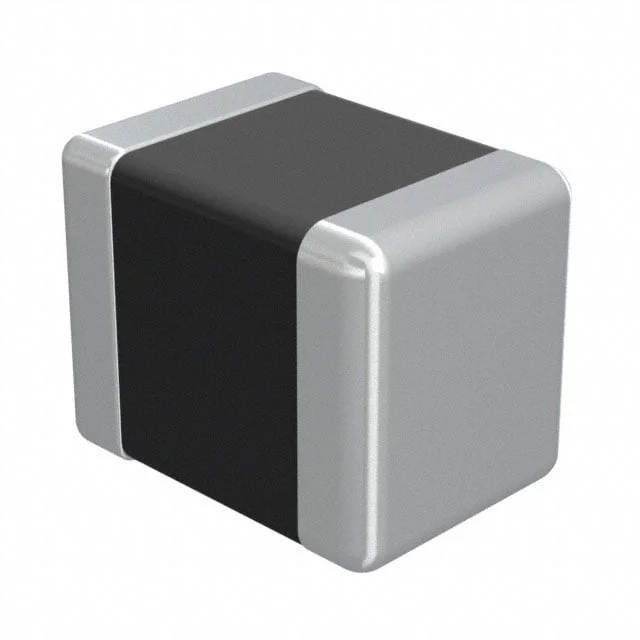

FIXED IND 150UH 95MA 6.1 OHM SMD
| Inductance | 150 µH |
| Tolerance | ±20% |
| Current Rating | 95 mA |
| DC Resistance (DCR) | 6.1Ohm |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.098" L x 0.071" W (2.50mm x 1.80mm) |
| Case / Size | 1007 (2518 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 150UH 95MA 6.1 OHM SMD |
| Series | LB |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Semi-Shielded |
| qFactor | - |
| selfResonantFreq | 7MHz |
| ratings | - |
| testFrequency | 796 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1007 (2518 Metric) |
| heightMax | 0.079" (2.00mm) |
| features | - |
