Description

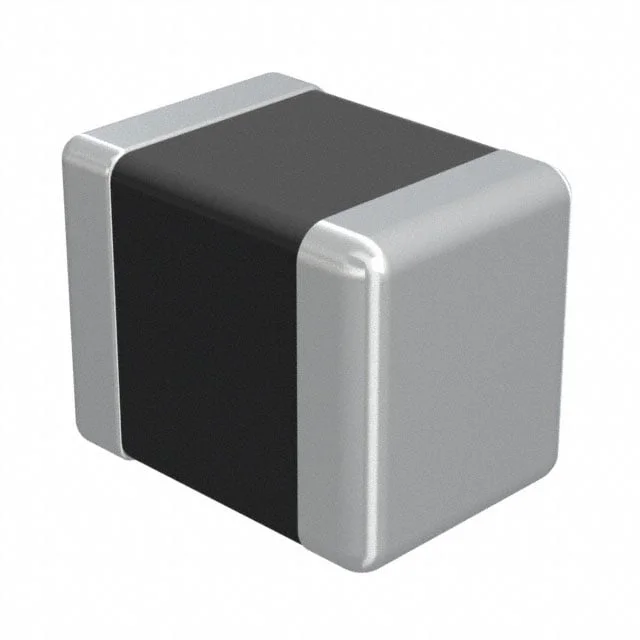

FIXED IND 1.5UH 730MA 143 MOHM
Specifications
Inductance
1.5 µH
Current Rating
730 mA
DC Resistance (DCR)
143mOhm Max
Dimensions
0.098" L x 0.071" W (2.50mm x 1.80mm)
Product Attributes
Manufacturer Verified
Last verified: 6/17/2026| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating | 730 mA |
| DC Resistance (DCR) | 143mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.098" L x 0.071" W (2.50mm x 1.80mm) |
| Case / Size | 1007 (2518 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 1.5UH 730MA 143 MOHM |
| Series | LB, C Type |
| productStatus | Not For New Designs |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 80MHz |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1007 (2518 Metric) |
| heightMax | 0.079" (2.00mm) |
| features | - |
