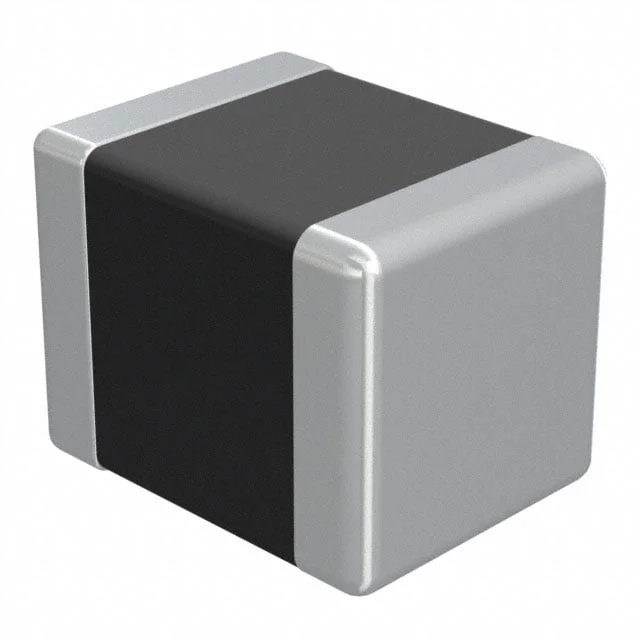

Description
FIXED IND 1UH 1.1A 55 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LBC3225T1R0MRV.
LBC3225T1R0MRV has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LBC3225T1R0MRV is rated for 1.1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LBC3225T1R0MRV lists a DC resistance of 55mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LBC3225T1R0MRV uses a package or case of 1210 (3225 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LBC3225T1R0MRV to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 1.1 A |
| DC Resistance (DCR) | 55mOhm |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Package / Case | 1210 (3225 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 1UH 1.1A 55 MOHM SMD |
| Series | LB, C Type |
| Product Status | Not For New Designs |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Self Resonant Frequency | 250MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1210 (3225 Metric) |
| Height - Seated (Max) | 0.106" (2.70mm) |
