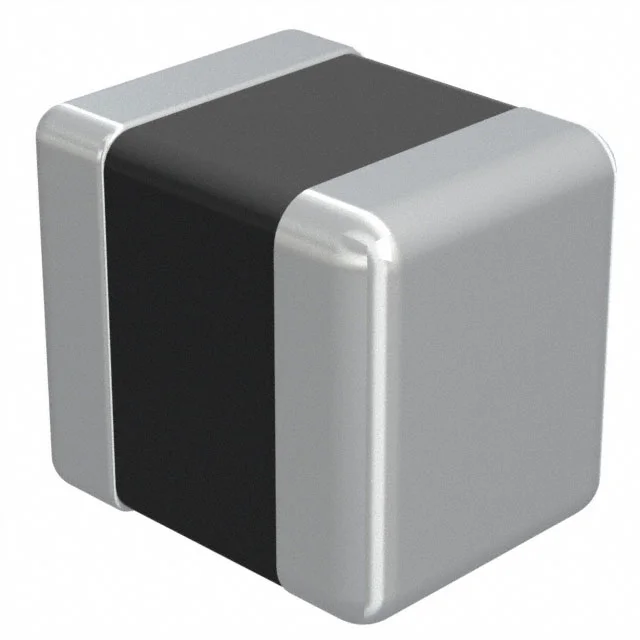

FIXED IND 1.8UH 345MA 624 MOHM
| Inductance | 1.8 µH |
| Tolerance | ±5% |
| Current Rating | 345 mA |
| DC Resistance (DCR) | 624mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Case / Size | 0806 (2016 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 1.8UH 345MA 624 MOHM |
| Series | LB, M Type |
| productStatus | Not For New Designs |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 30 @ 7.96MHz |
| selfResonantFreq | 100MHz |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0806 (2016 Metric) |
| heightMax | 0.071" (1.80mm) |
| features | - |
