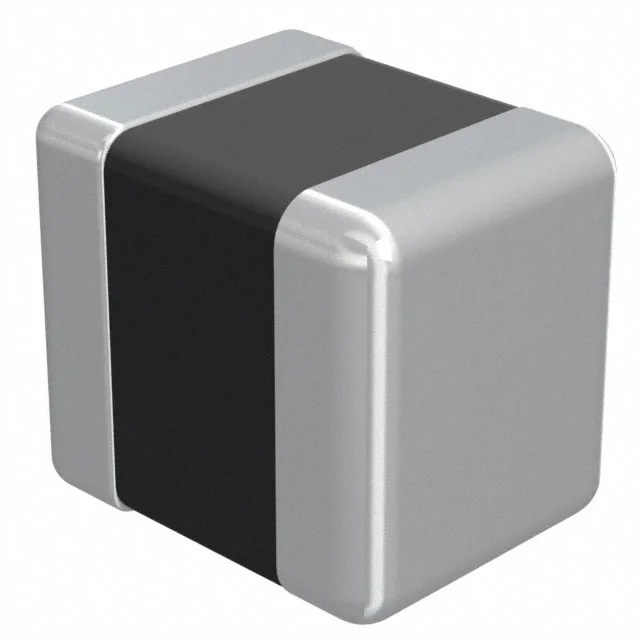

LBM2016T220JV
Taiyo Yuden
Description
FIXED IND 22UH 140MA 3.64 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LBM2016T220JV.
LBM2016T220JV has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LBM2016T220JV is rated for 140 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LBM2016T220JV lists a DC resistance of 3.64Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LBM2016T220JV uses a package or case of 0806 (2016 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LBM2016T220JV to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±5% |
| Current Rating | 140 mA |
| DC Resistance (DCR) | 3.64Ohm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Case / Size | 0806 (2016 Metric) |
| Package / Case | 0806 (2016 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 22UH 140MA 3.64 OHM |
| Series | LB, M Type |
| Product Status | Not For New Designs |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 25 @ 2.52MHz |
| Self Resonant Frequency | 17MHz |
| Inductance Test Frequency | 2.52 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0806 (2016 Metric) |
| Height - Seated (Max) | 0.071" (1.80mm) |
