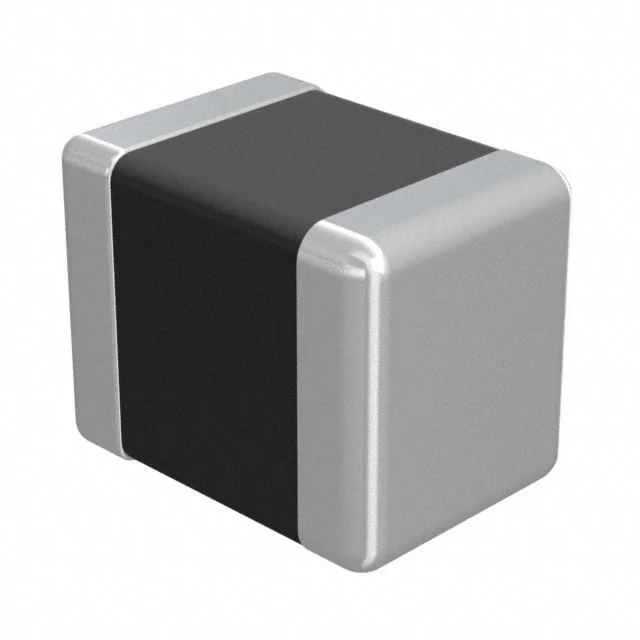

FIXED IND 10UH 235MA 190 MOHM
| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating | 235 mA |
| DC Resistance (DCR) | 190mOhm |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.098" L x 0.071" W (2.50mm x 1.80mm) |
| Case / Size | 1007 (2518 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 10UH 235MA 190 MOHM |
| Series | LB, R Type |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 30MHz |
| ratings | AEC-Q200 |
| testFrequency | 2.52 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1007 (2518 Metric) |
| heightMax | 0.079" (2.00mm) |
| features | - |
