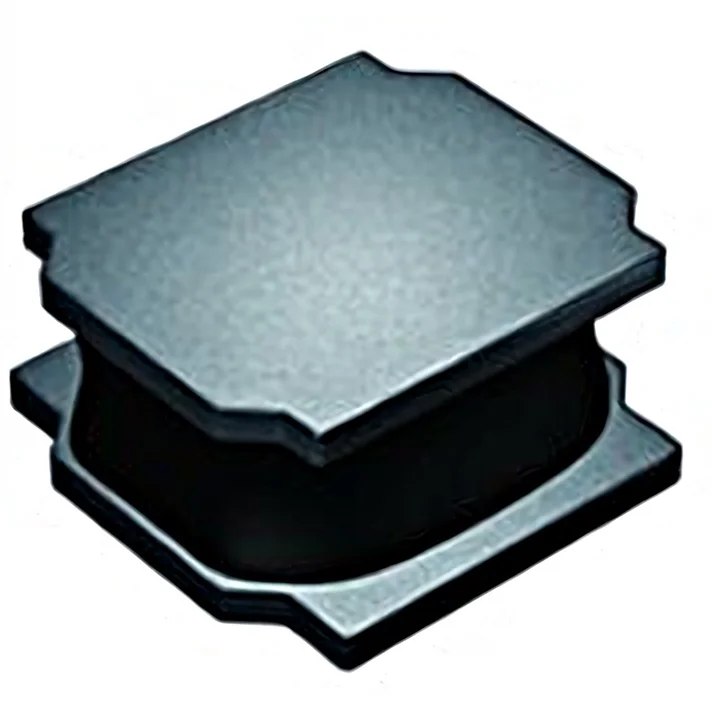

FIXED IND 1UH 6.2A 9 MOHM SMD
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating | 6.2 A |
| DC Resistance (DCR) | 9mOhm |
| saturationCurrent | 7.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Case / Size | 3131 (8080 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 1UH 6.2A 9 MOHM SMD |
| Series | LBXN |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Semi-Shielded |
| qFactor | - |
| selfResonantFreq | 120MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 3131 |
| heightMax | 0.118" (3.00mm) |
| features | - |
