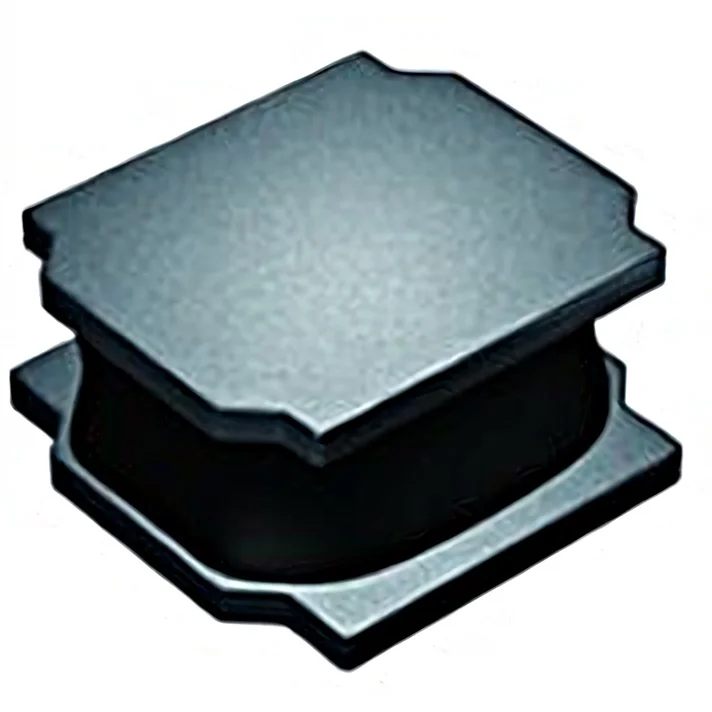

FIXED IND 1.4UH 7A 7 MOHM SMD
| Inductance | 1.4 µH |
| Tolerance | ±30% |
| Current Rating | 7 A |
| DC Resistance (DCR) | 7mOhm |
| saturationCurrent | 10A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Case / Size | 3131 (8080 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 1.4UH 7A 7 MOHM SMD |
| Series | LCXN |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Semi-Shielded |
| qFactor | - |
| selfResonantFreq | 63MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 3131 |
| heightMax | 0.165" (4.20mm) |
| features | - |
