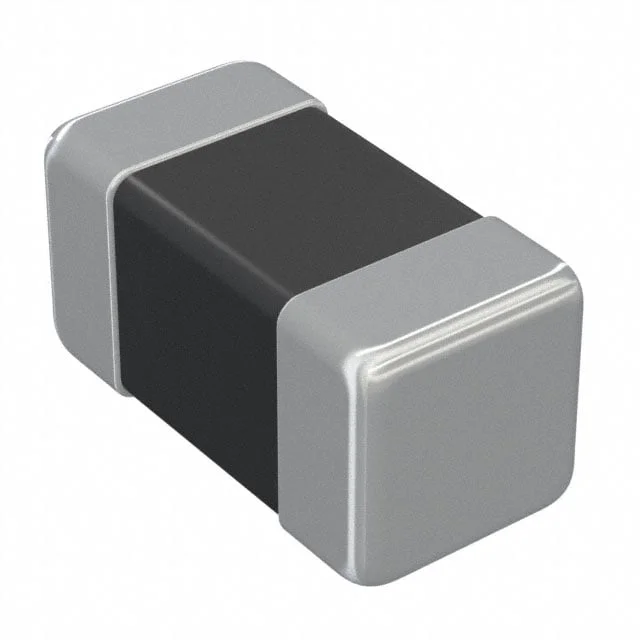

FIXED IND 2.2UH 20MA 1.15 OHM
| Inductance | 2.2 µH |
| Tolerance | ±10% |
| Current Rating | 20 mA |
| DC Resistance (DCR) | 1.15Ohm |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Case / Size | 0402 (1005 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 2.2UH 20MA 1.15 OHM |
| Series | LK |
| productStatus | Obsolete |
| typeConstruction | Multilayer |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | 20 @ 10MHz |
| selfResonantFreq | 40MHz |
| ratings | AEC-Q200 |
| testFrequency | 10 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0402 (1005 Metric) |
| heightMax | 0.022" (0.55mm) |
| features | - |
