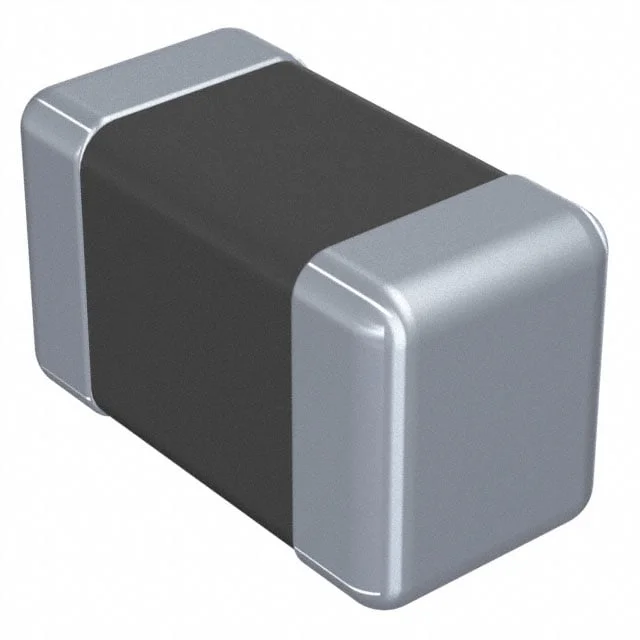

FIXED IND 1UH 40MA 600 MOHM SMD
| Inductance | 1 µH |
| Tolerance | ±10% |
| Current Rating | 40 mA |
| DC Resistance (DCR) | 600mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Case / Size | 0603 (1608 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 1UH 40MA 600 MOHM SMD |
| Series | LK |
| productStatus | Obsolete |
| typeConstruction | Multilayer |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | 35 @ 10MHz |
| selfResonantFreq | 70MHz |
| ratings | - |
| testFrequency | 10 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0603 (1608 Metric) |
| heightMax | 0.037" (0.95mm) |
