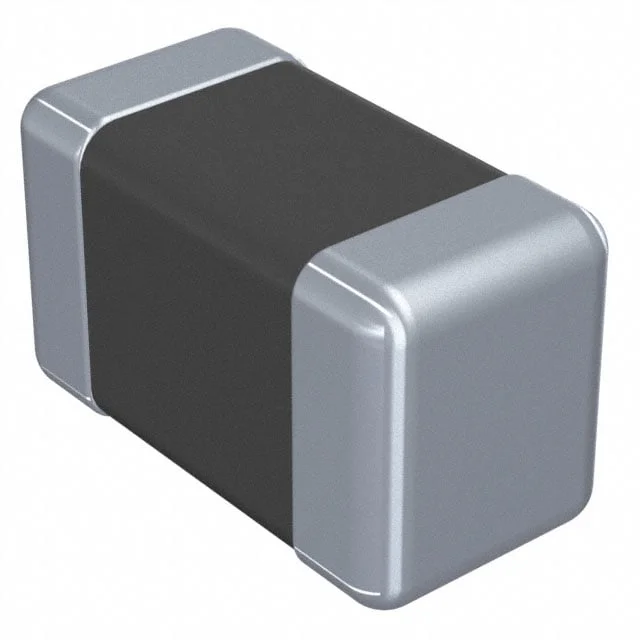

FIXED IND 33UH 1MA 2.2 OHM SMD
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating | 1 mA |
| DC Resistance (DCR) | 2.2Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Case / Size | 0603 (1608 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 33UH 1MA 2.2 OHM SMD |
| Series | LK |
| productStatus | Obsolete |
| typeConstruction | Multilayer |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | 20 @ 1MHz |
| selfResonantFreq | 9MHz |
| ratings | - |
| testFrequency | 1 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0603 (1608 Metric) |
| heightMax | 0.037" (0.95mm) |
