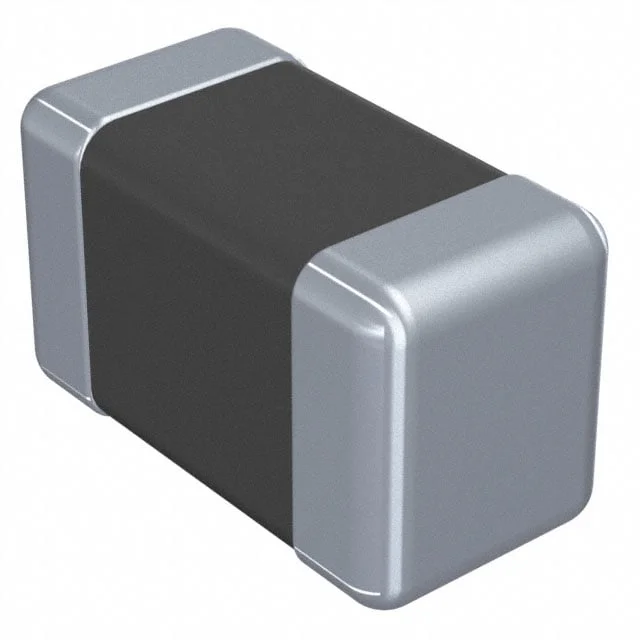

FIXED IND 47NH 150MA 200 MOHM
| Inductance | 47 nH |
| Tolerance | ±20% |
| Current Rating | 150 mA |
| DC Resistance (DCR) | 200mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Case / Size | 0603 (1608 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 47NH 150MA 200 MOHM |
| Series | LK |
| productStatus | Obsolete |
| typeConstruction | Multilayer |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | 10 @ 50MHz |
| selfResonantFreq | 260MHz |
| ratings | - |
| testFrequency | 50 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0603 (1608 Metric) |
| heightMax | 0.037" (0.95mm) |
