Description

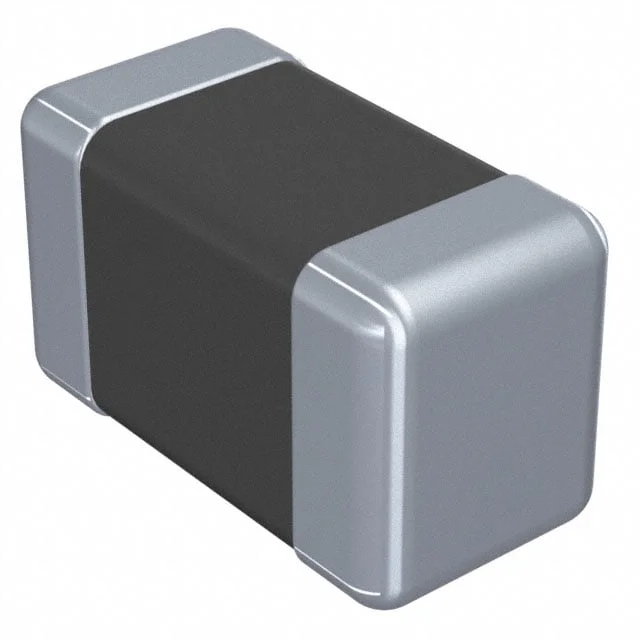

FIXED IND 220NH 100MA 550 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LK1608R22K-T.
LK1608R22K-T has an inductance value of 220 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LK1608R22K-T is rated for 100 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LK1608R22K-T lists a DC resistance of 550mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LK1608R22K-T uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LK1608R22K-T to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 220 nH |
| Tolerance | ±10% |
| Current Rating | 100 mA |
| DC Resistance (DCR) | 550mOhm Max |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 220NH 100MA 550 MOHM |
| Series | LK |
| Product Status | Obsolete |
| Type / Construction | Multilayer |
| Shielding | Shielded |
| Q @ Frequency | 15 @ 25MHz |
| Self Resonant Frequency | 150MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 (1608 Metric) |
| Height - Seated (Max) | 0.037" (0.95mm) |
