Description

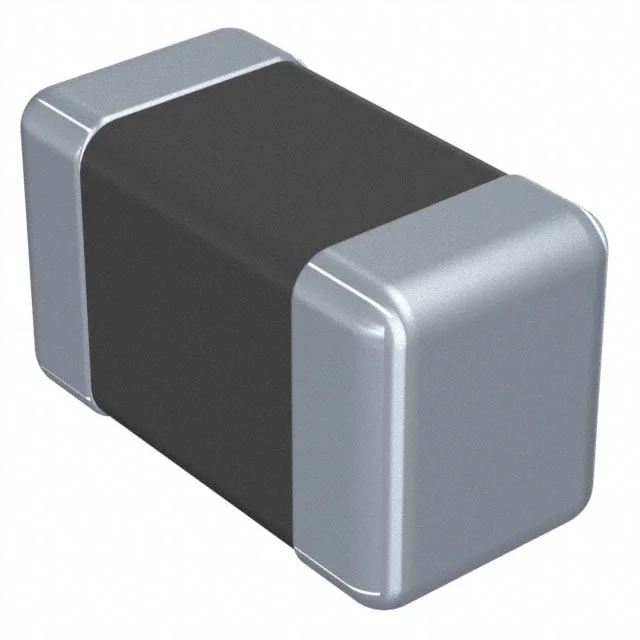

FIXED IND 680NH 40MA 1.25 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LK1608R68K-T.
LK1608R68K-T has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LK1608R68K-T is rated for 40 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LK1608R68K-T lists a DC resistance of 1.25Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LK1608R68K-T uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LK1608R68K-T to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±10% |
| Current Rating | 40 mA |
| DC Resistance (DCR) | 1.25Ohm Max |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 680NH 40MA 1.25 OHM |
| Series | LK |
| Product Status | Obsolete |
| Type / Construction | Multilayer |
| Shielding | Shielded |
| Q @ Frequency | 15 @ 25MHz |
| Self Resonant Frequency | 80MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 (1608 Metric) |
| Height - Seated (Max) | 0.037" (0.95mm) |
