Description

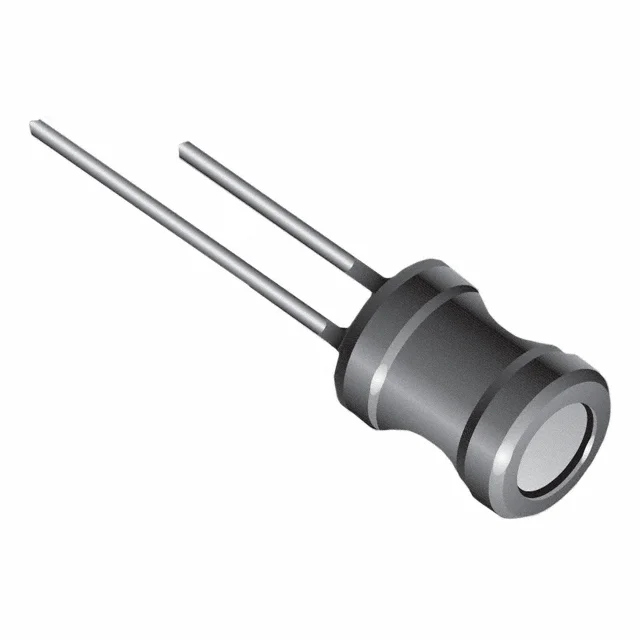

FIXED IND 50UH 4A 36 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LPV1823-500KL.
LPV1823-500KL has an inductance value of 50 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LPV1823-500KL is rated for 4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LPV1823-500KL lists a DC resistance of 36mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LPV1823-500KL uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LPV1823-500KL to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 50 µH |
| Tolerance | ±10% |
| Current Rating | 4 A |
| DC Resistance (DCR) | 36mOhm Max |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.709" Dia (18.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 50UH 4A 36 MOHM TH |
| Series | LPV |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.906" (23.00mm) |
