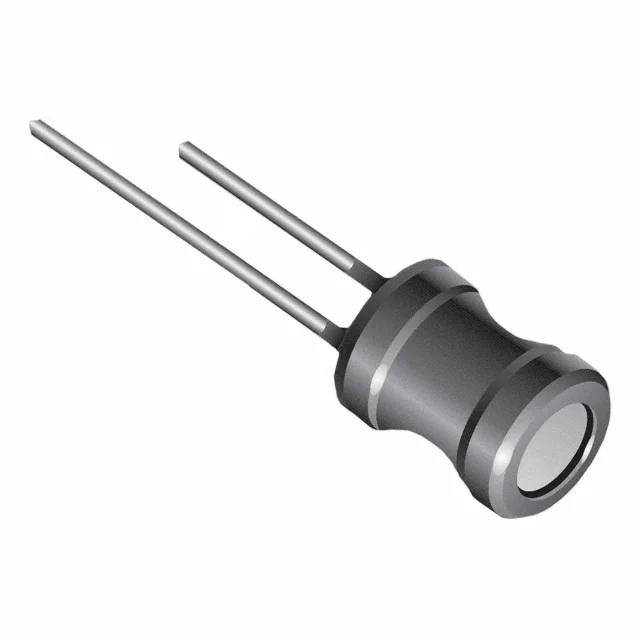

FIXED IND 10UH 10A 8 MOHM TH
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 10 A |
| DC Resistance (DCR) | 8mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.787" Dia (20.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10UH 10A 8 MOHM TH |
| Series | LPV |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.906" (23.00mm) |
| features | - |
