Description
FIXED IND 2MH 800MA 1.2 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LPV2023-202KL.
LPV2023-202KL has an inductance value of 2 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LPV2023-202KL is rated for 800 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LPV2023-202KL lists a DC resistance of 1.2Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.

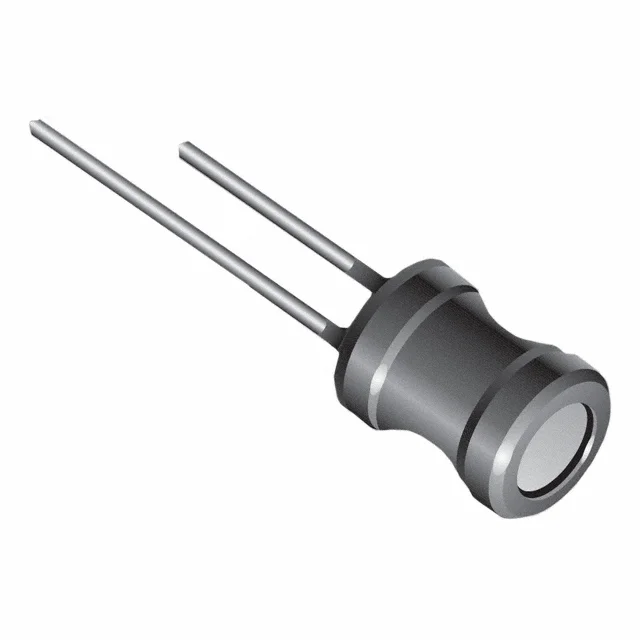

LPV2023-202KL uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LPV2023-202KL to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 2 mH |
| Tolerance | ±10% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 1.2Ohm Max |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.787" Dia (20.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2MH 800MA 1.2 OHM TH |
| Series | LPV |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.906" (23.00mm) |
