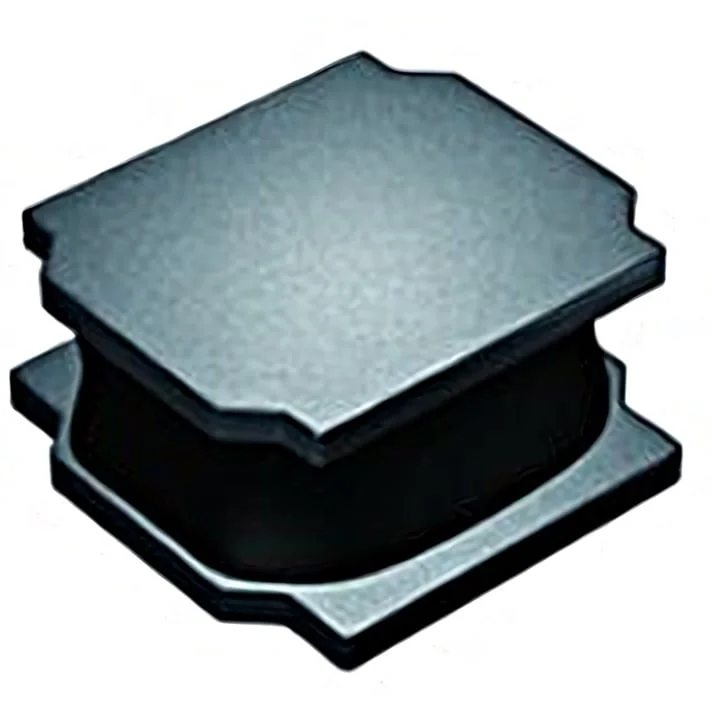

FIXED IND 6.8UH 1.65A 138 MOHM
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 1.65 A |
| DC Resistance (DCR) | 138mOhm Max |
| saturationCurrent | 1.7A |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 6.8UH 1.65A 138 MOHM |
| Series | LSXN |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Semi-Shielded |
| qFactor | - |
| selfResonantFreq | 30MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 2424 |
| heightMax | 0.055" (1.40mm) |
| features | - |
