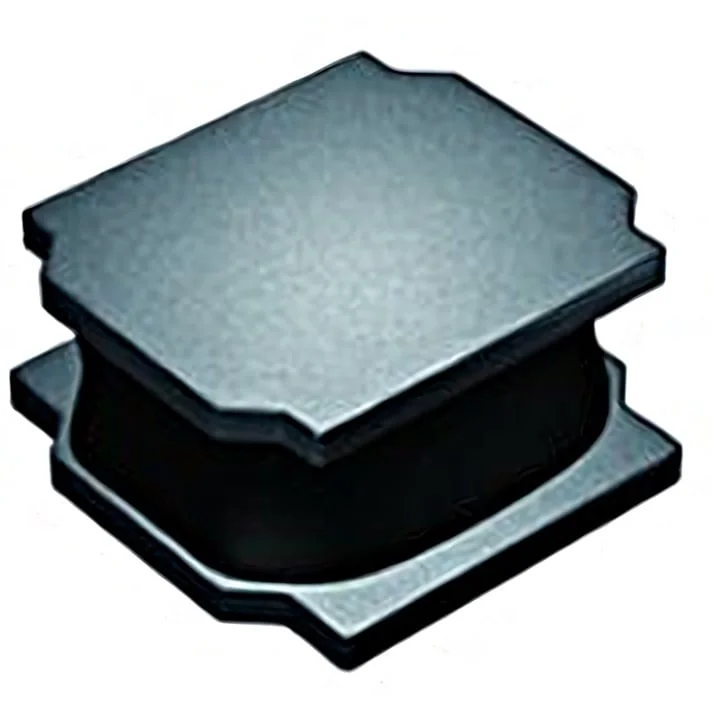

Description
FIXED IND 2.2UH 2.9A 40.8 MOHM
Specifications
Inductance
2.2 µH
Current Rating
2.9 A
DC Resistance (DCR)
40.8mOhm Max
Dimensions
0.236" L x 0.236" W (6.00mm x 6.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/17/2026| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating | 2.9 A |
| DC Resistance (DCR) | 40.8mOhm Max |
| saturationCurrent | 3.2A |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 2.2UH 2.9A 40.8 MOHM |
| Series | LSXN |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Semi-Shielded |
| qFactor | - |
| selfResonantFreq | 73MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 2424 |
| heightMax | 0.079" (2.00mm) |
| features | - |
